Made to Order
Lead time is 4 weeks for powder coated version

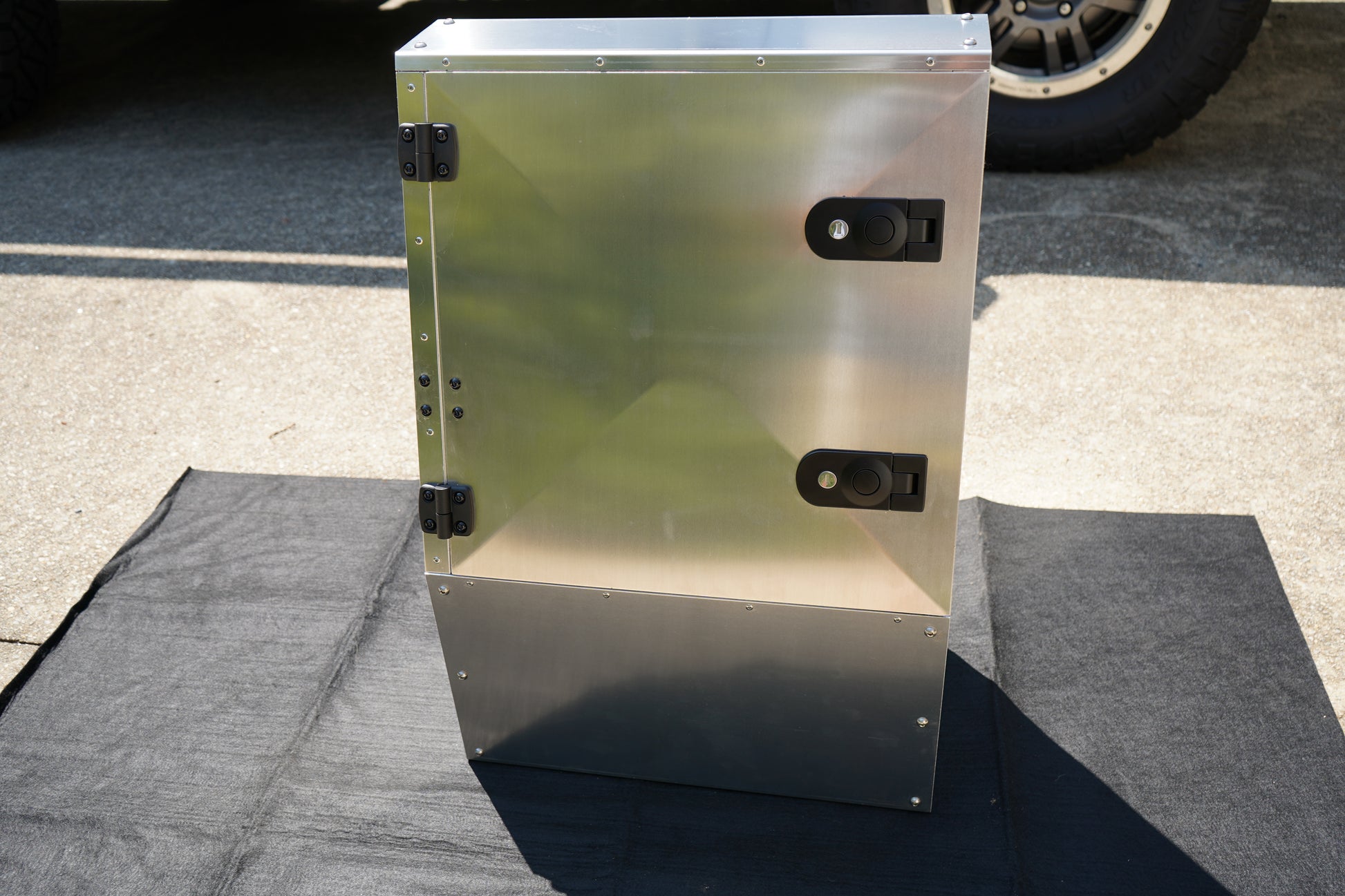

A4X Slanted Utility Box is designed to sit behind the second row seats in any Sport Utility Vehicle. This locking space can be used for anything that you need to store, mount, lock or hide away.

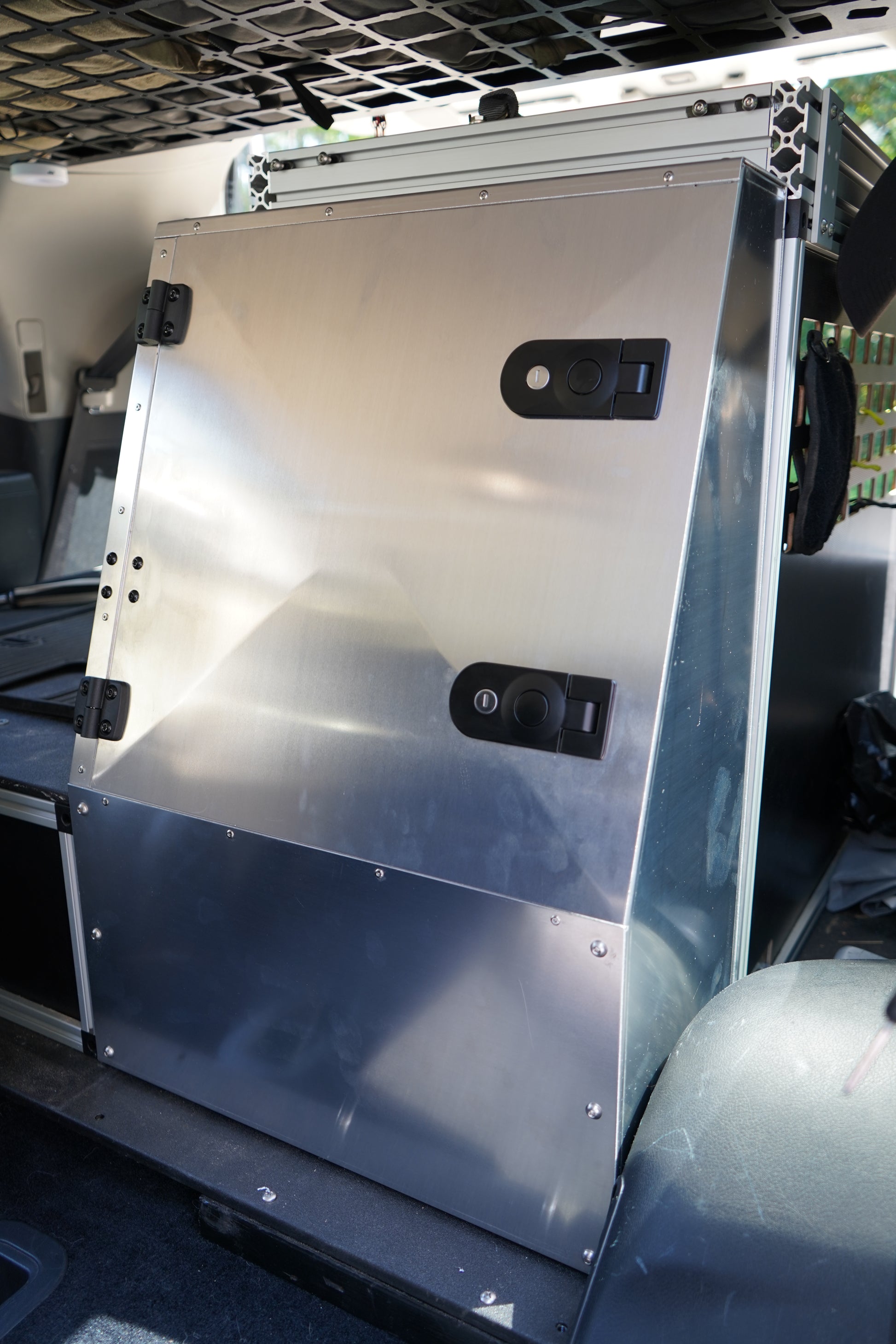

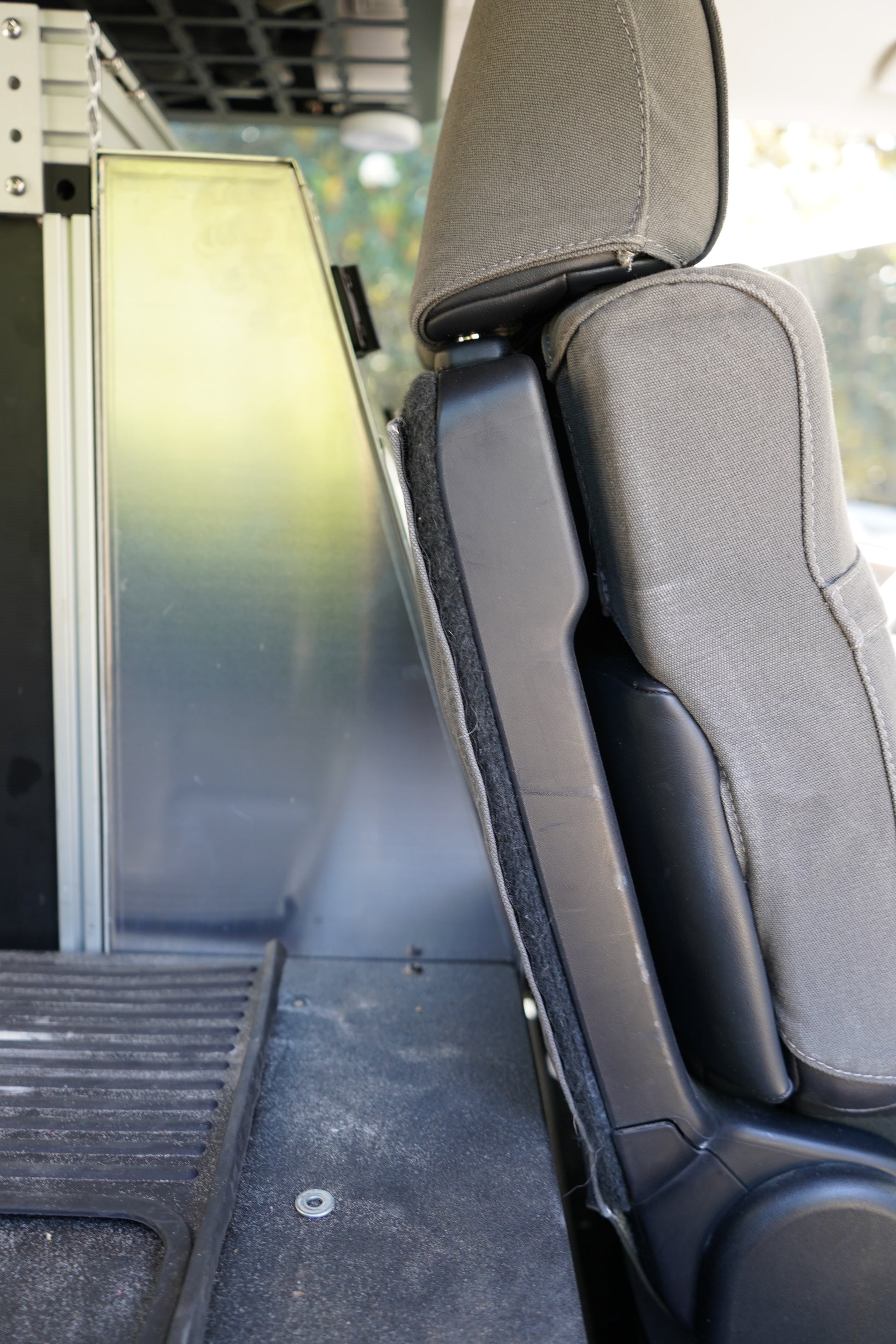

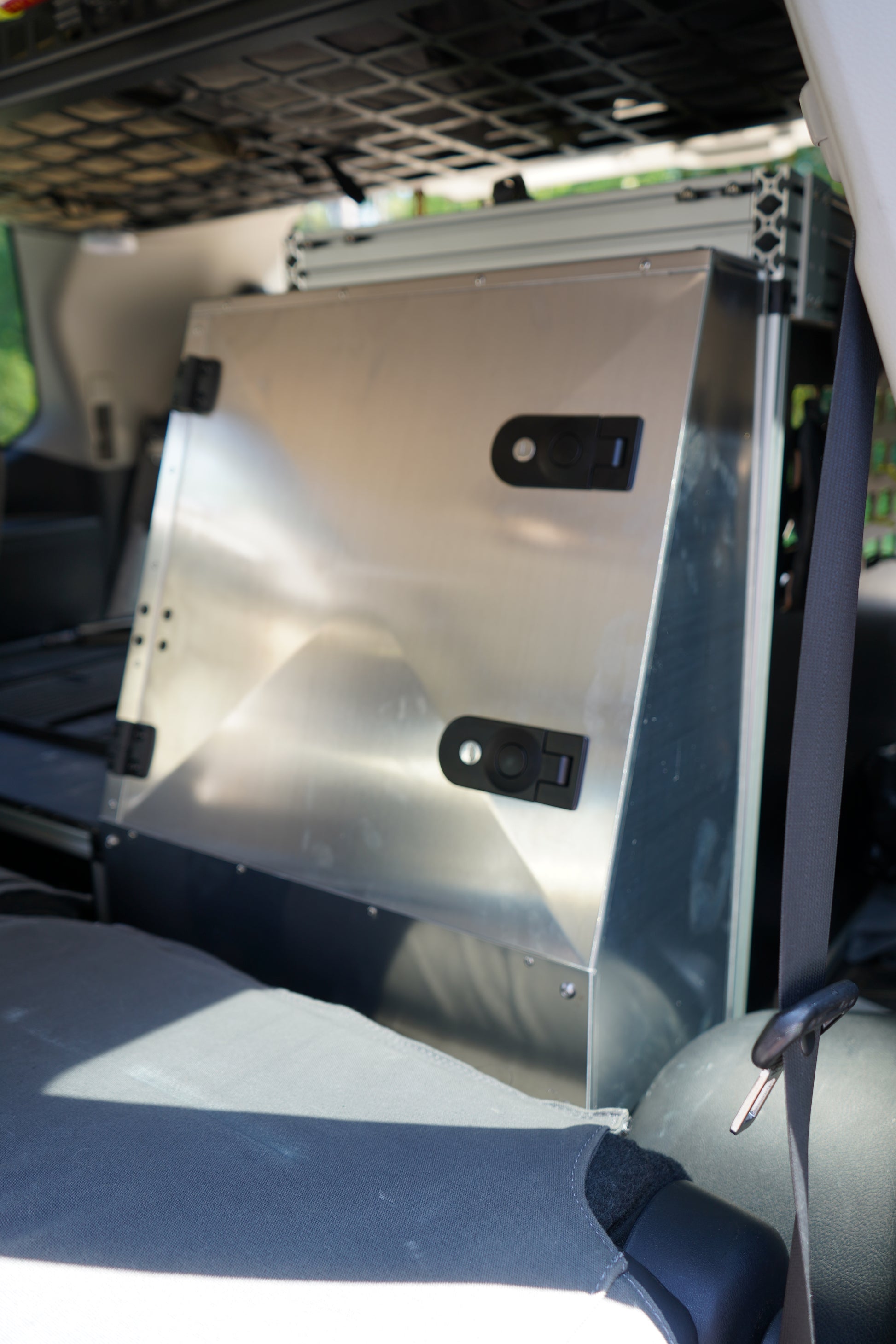

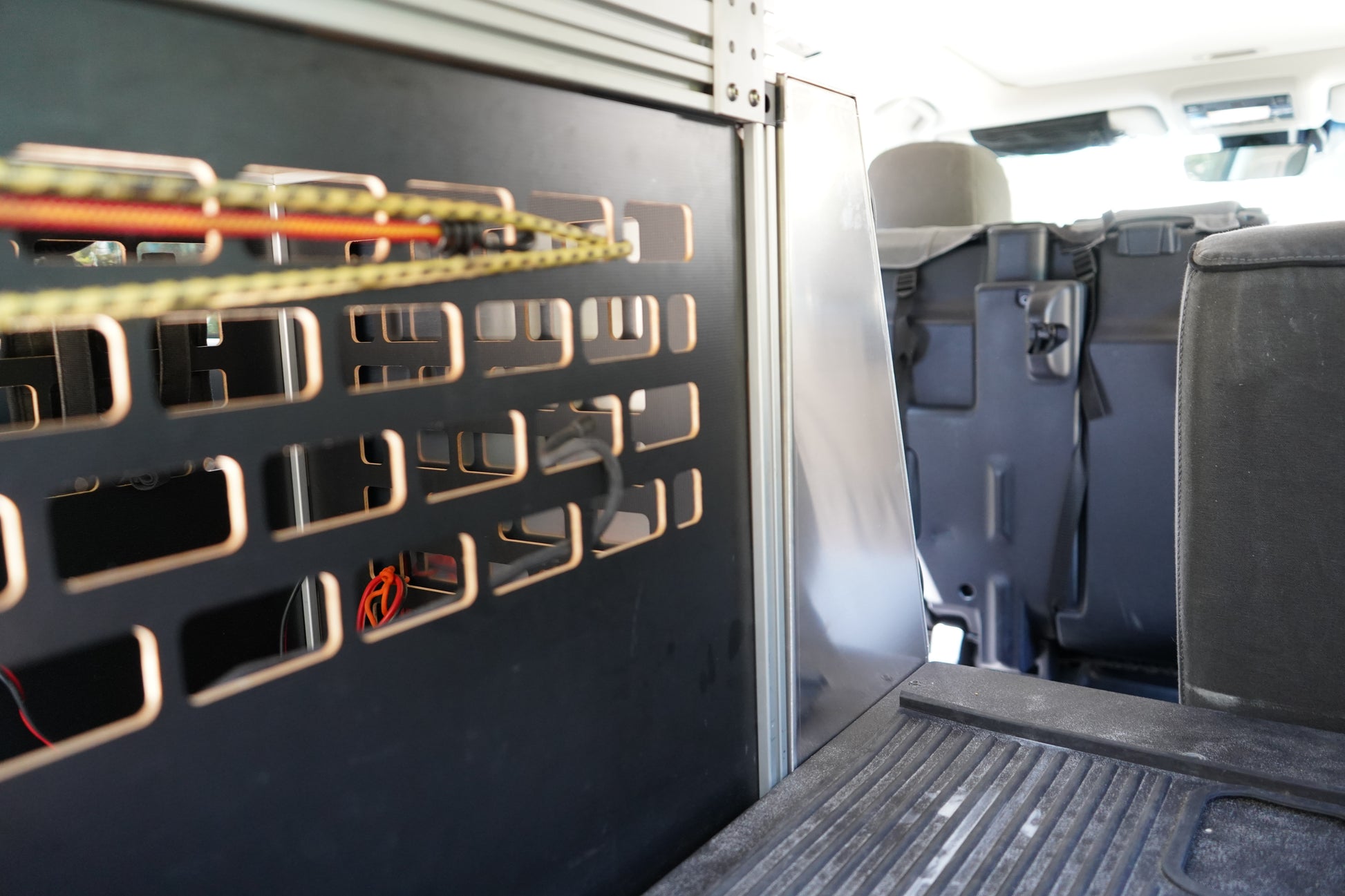

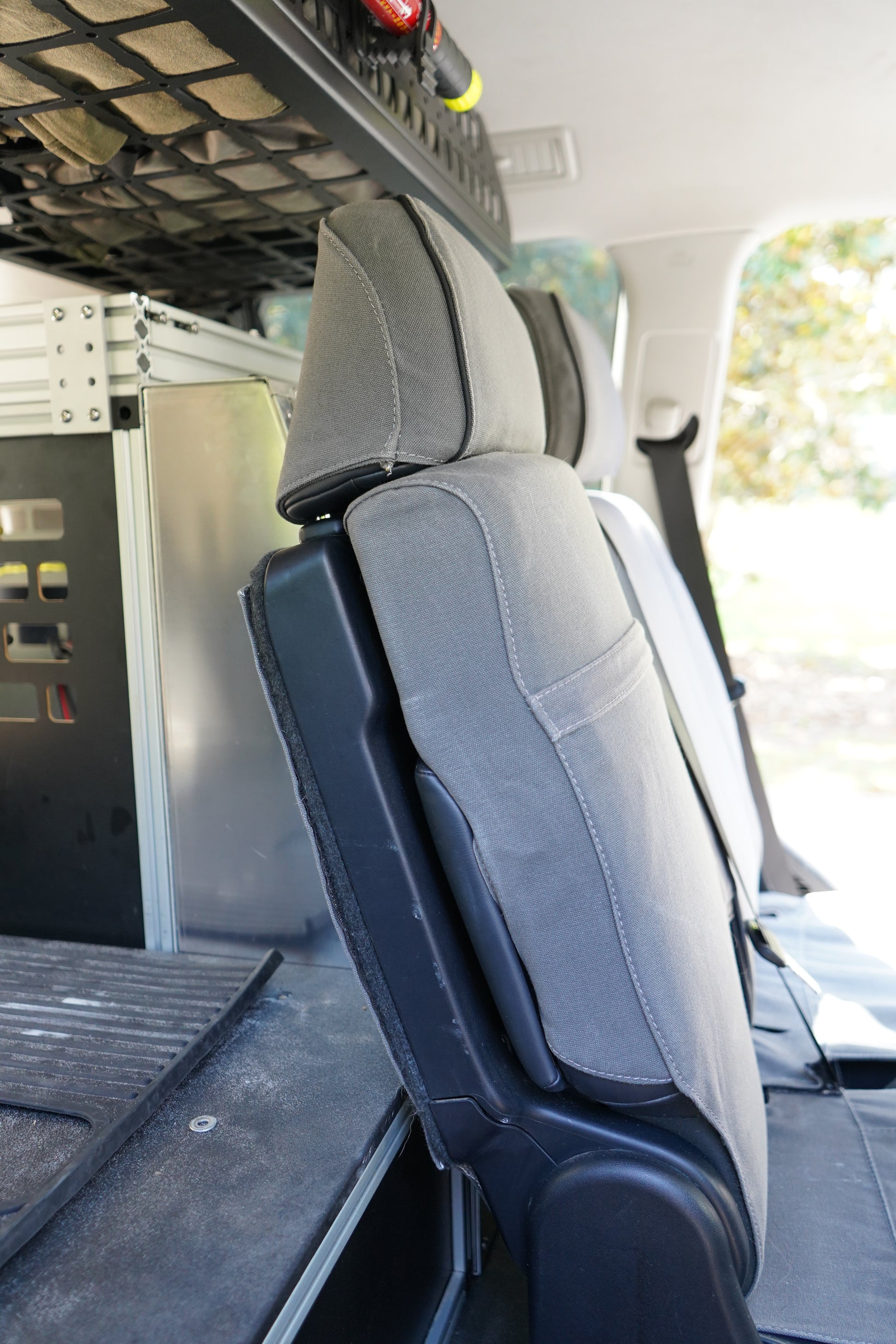

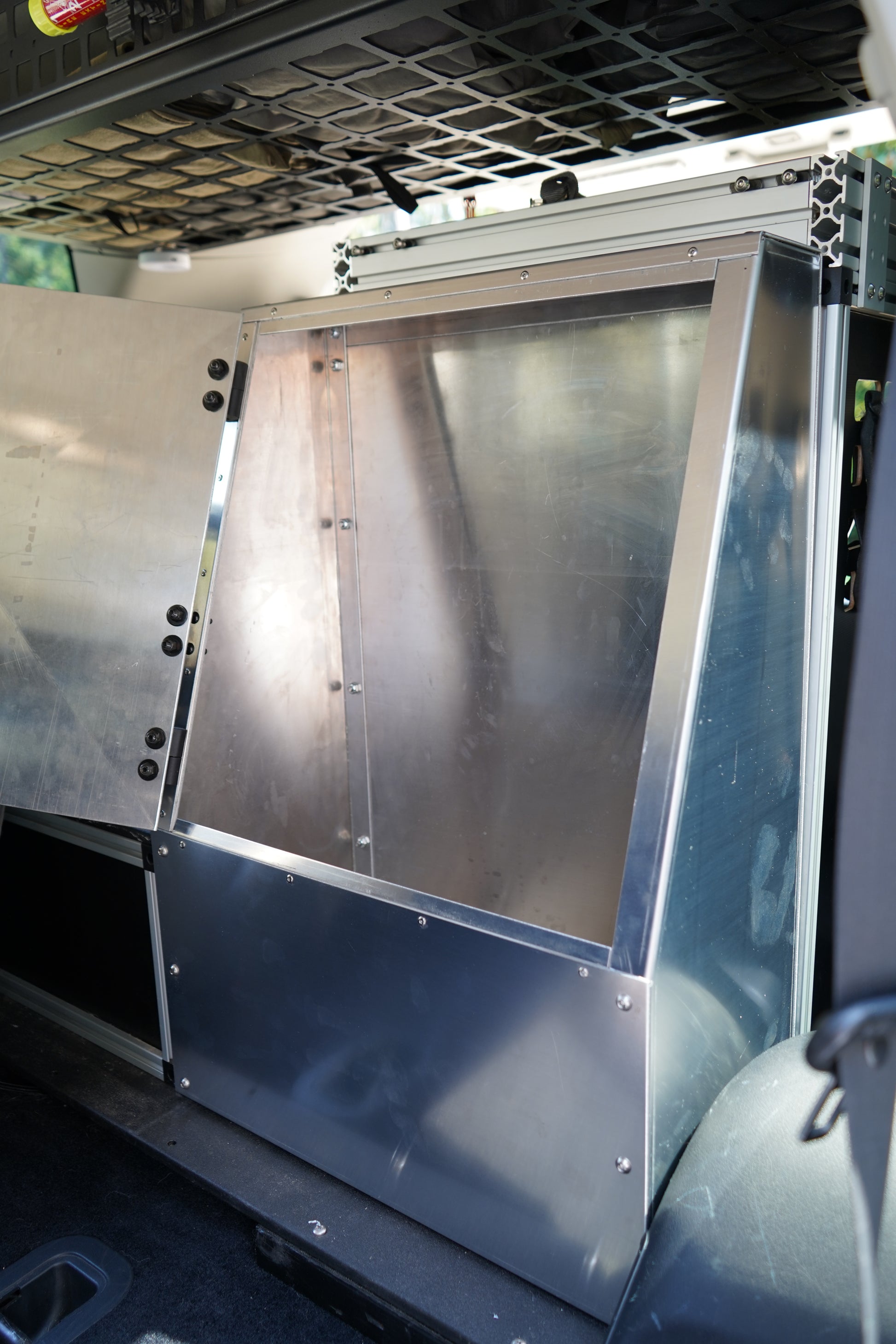

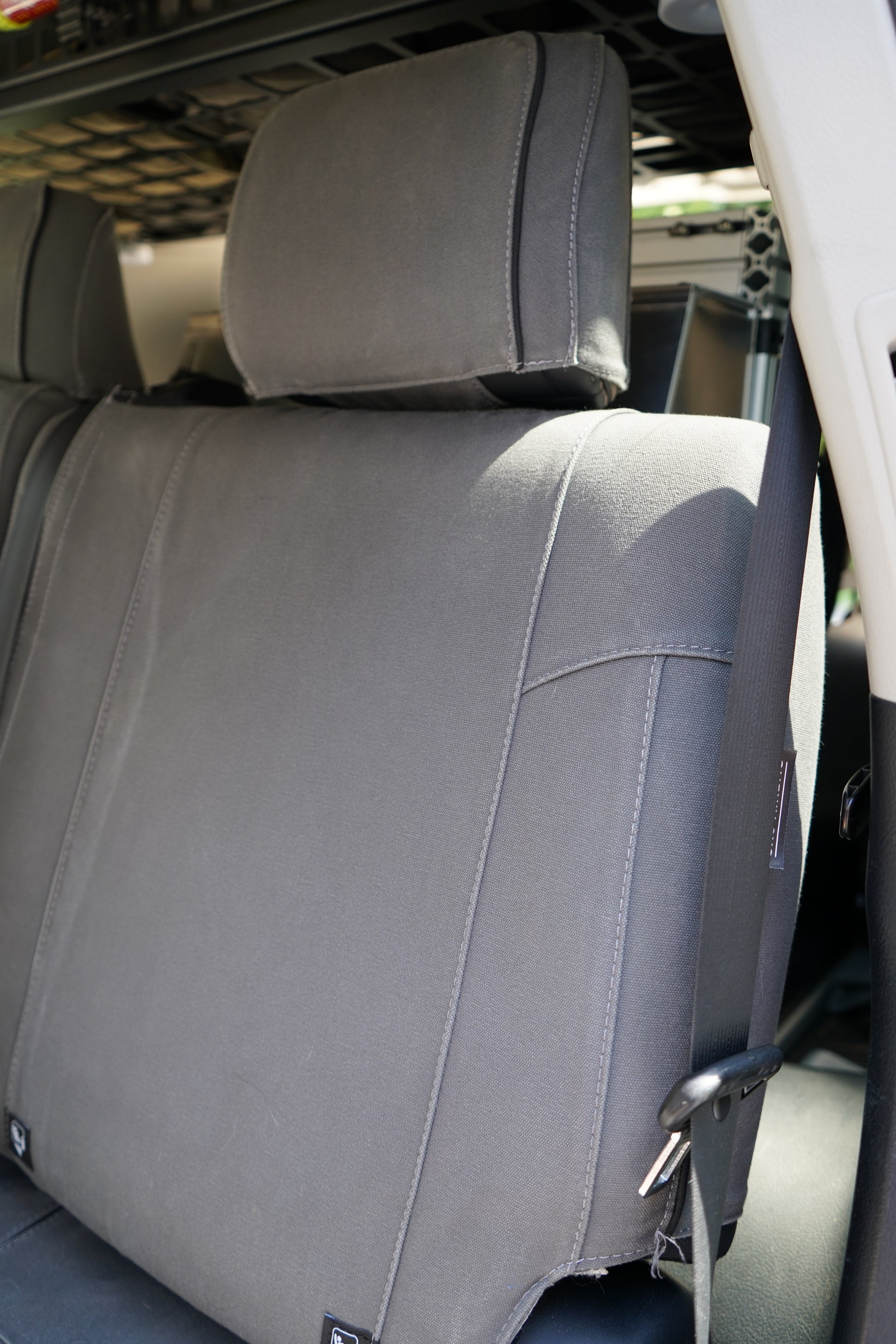

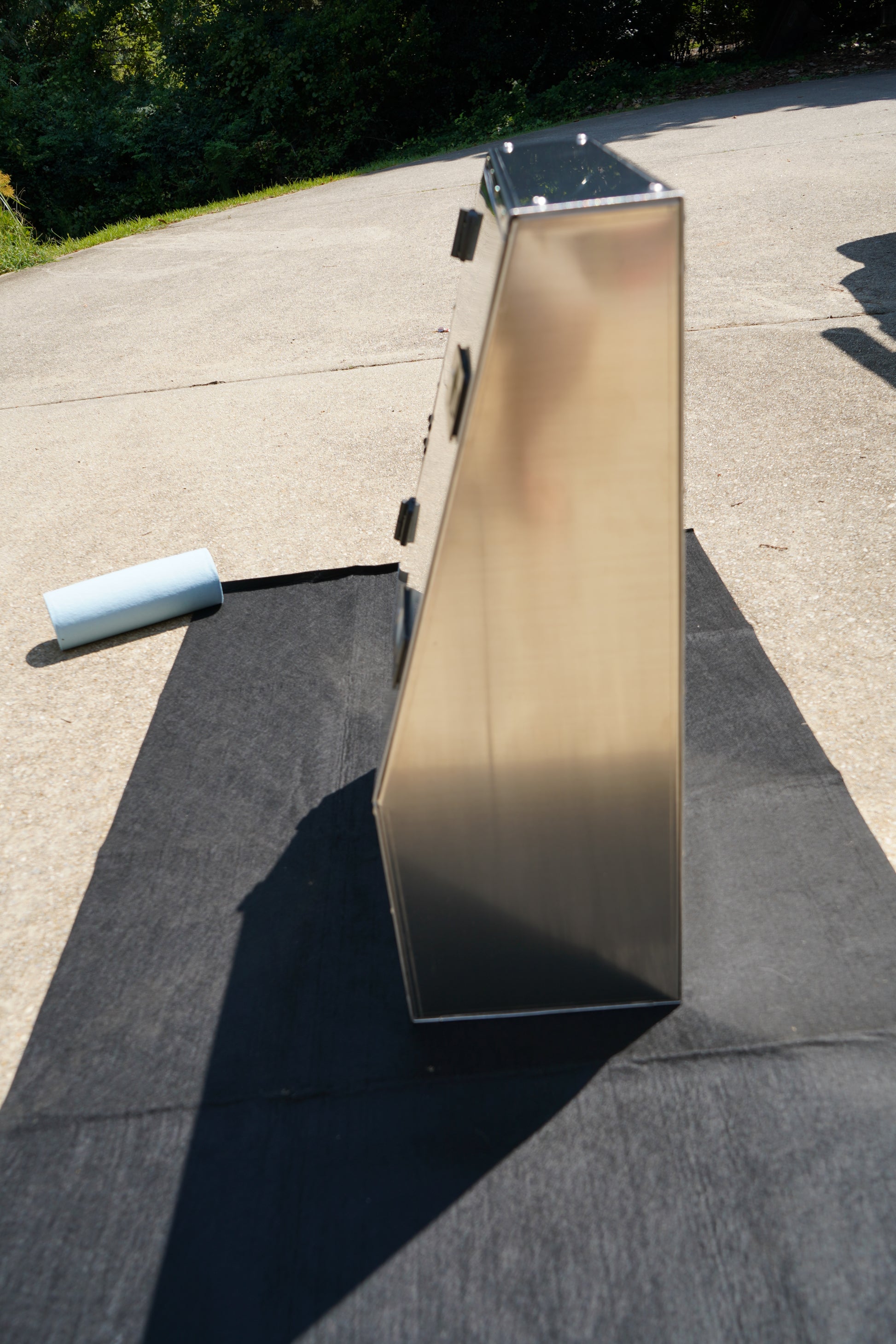

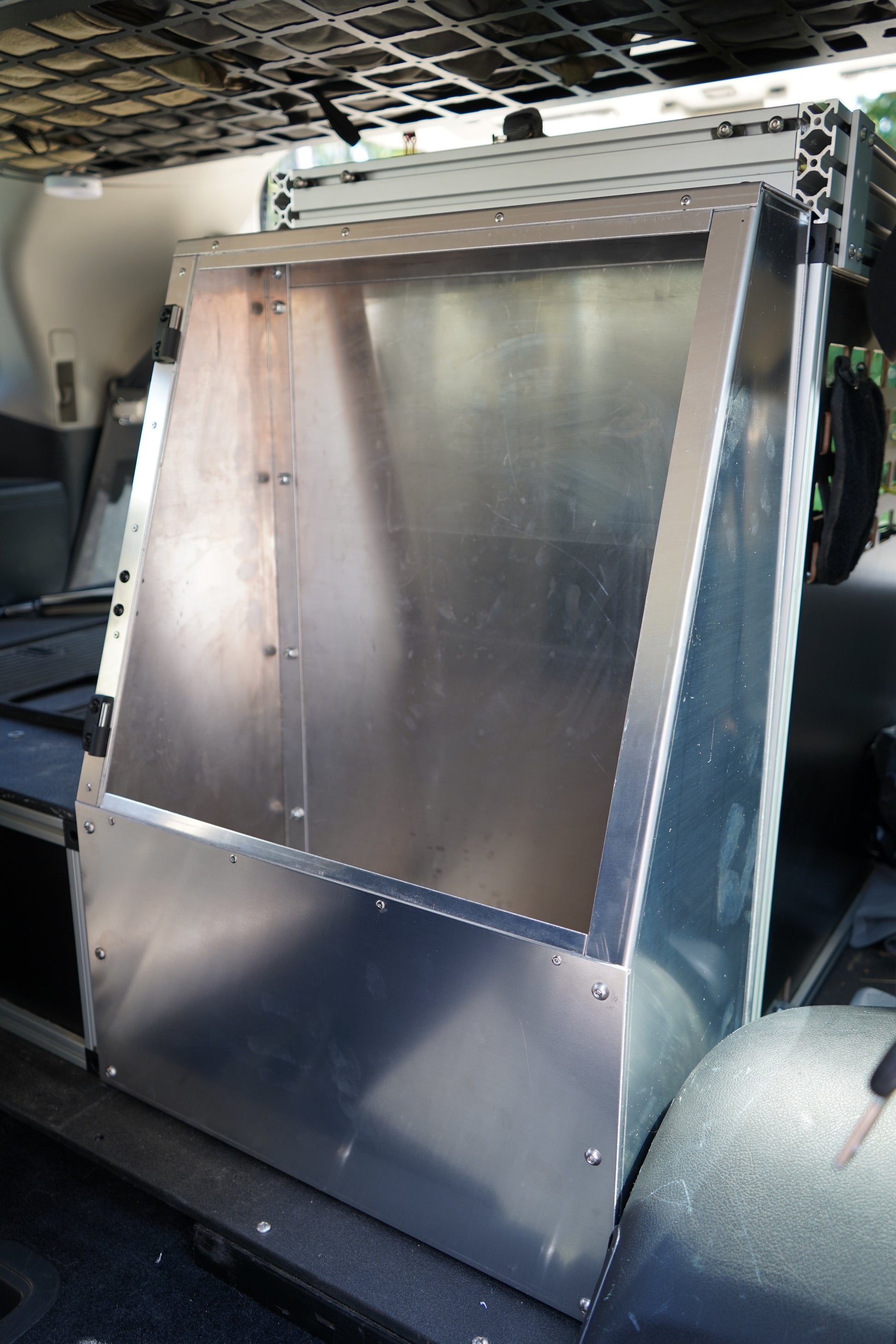

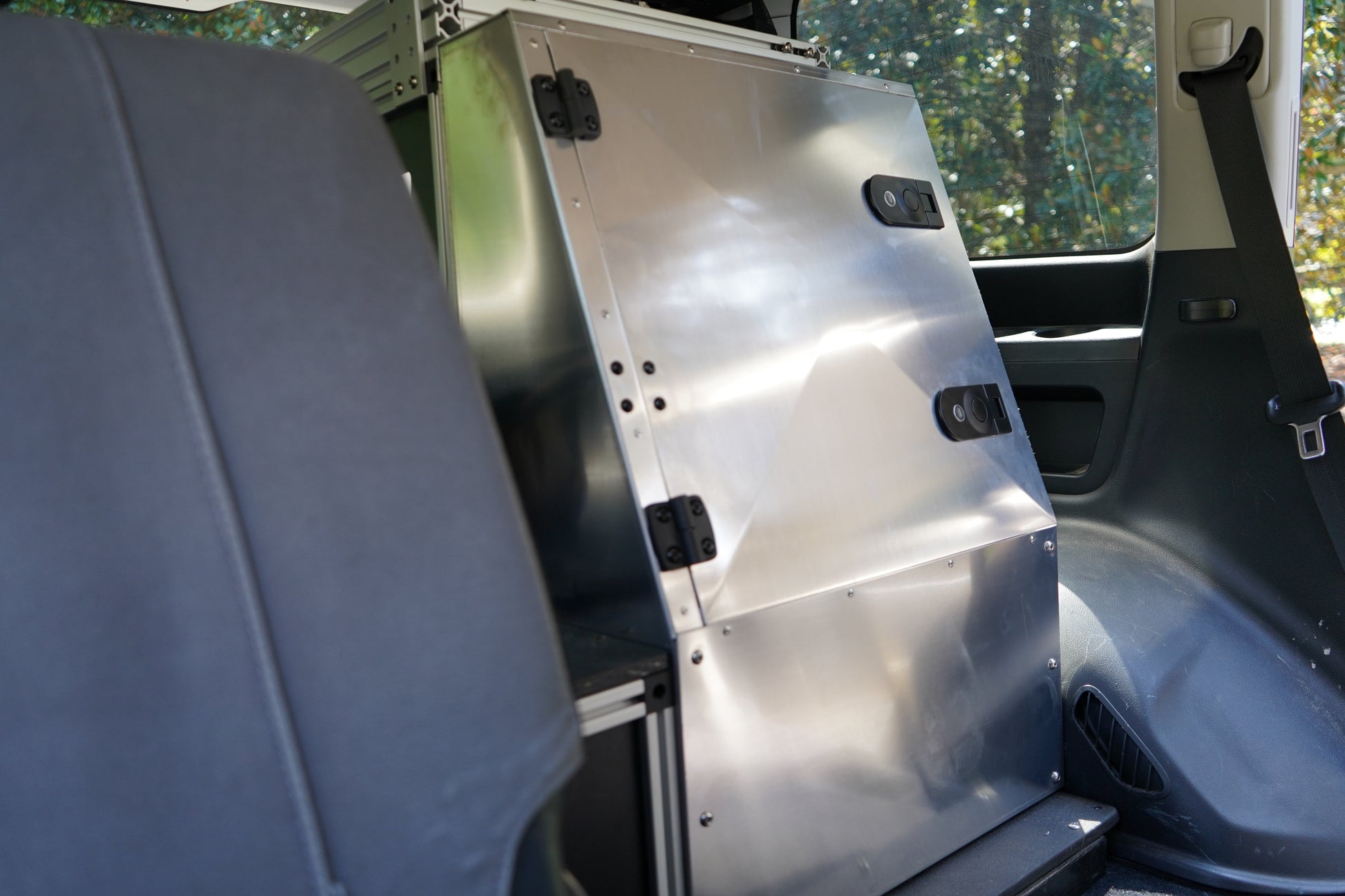

The box is slanted to allow the rear seat to recline to a comfortable position. Shown in a 200 series Land Cruiser. The ASUB completely replaces the Goose Gear Utility Module used on the 100 and 200 series Land Cruisers.

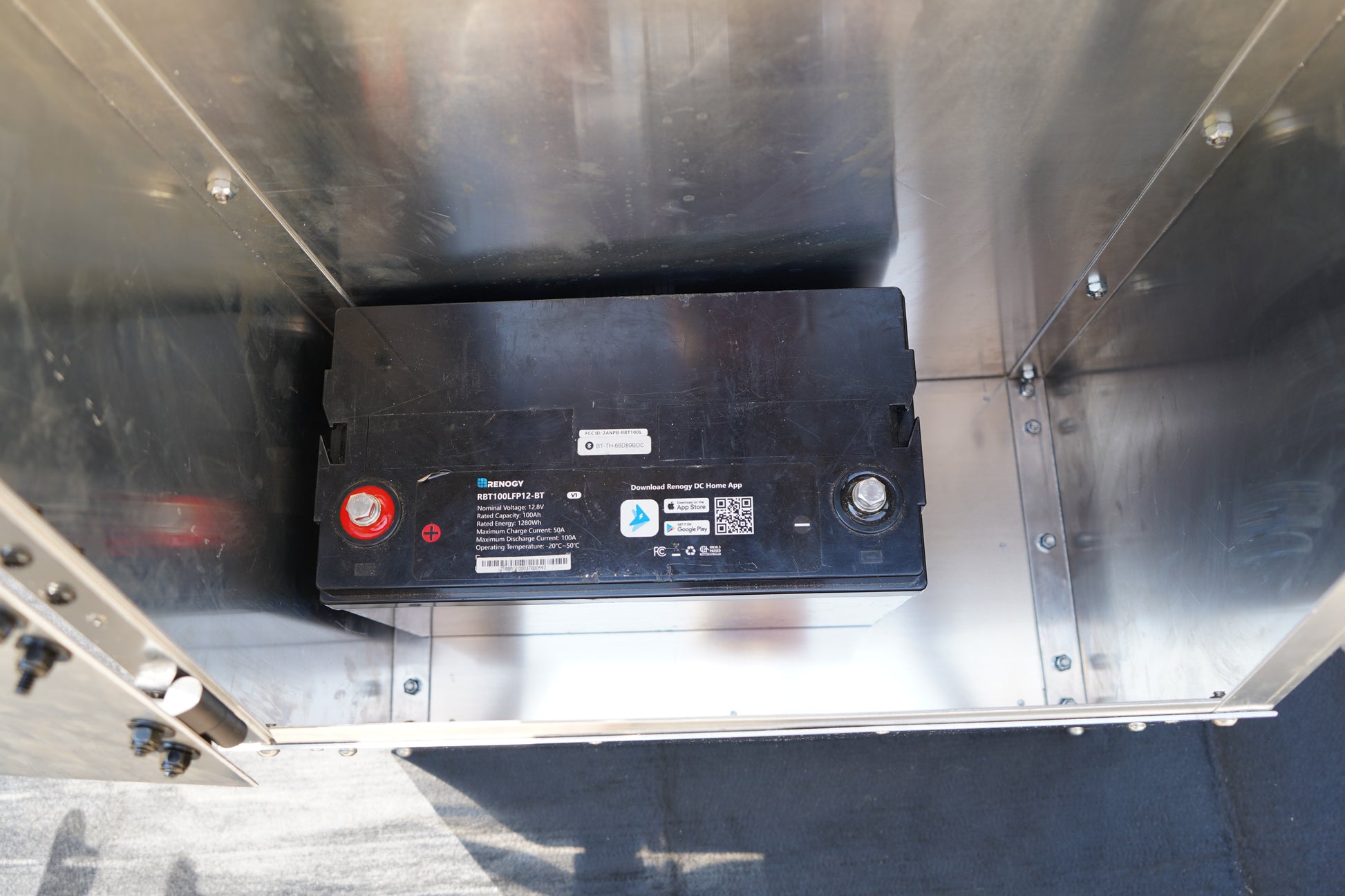

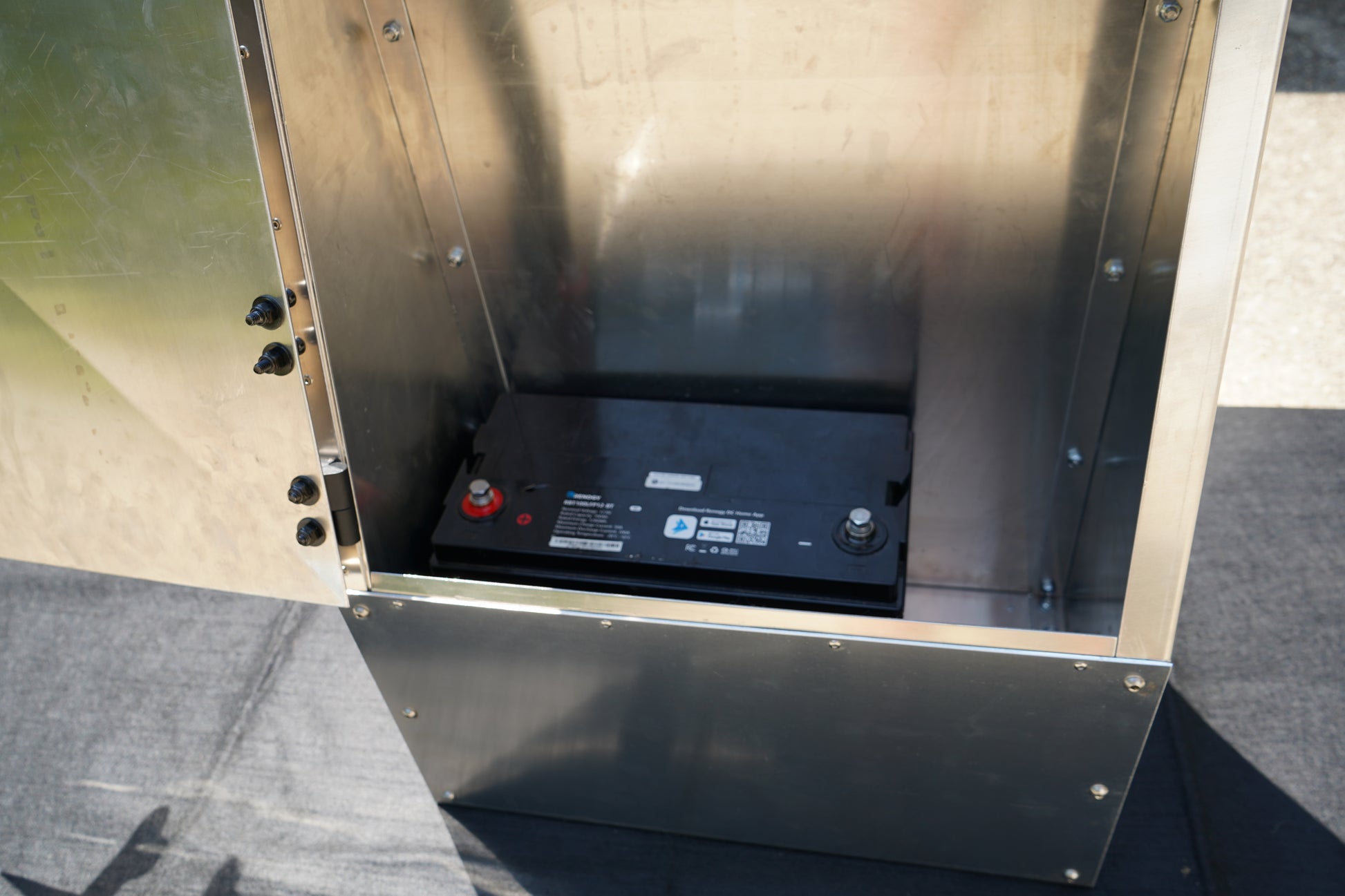

It was purposely designed to mount in front of a Fridge slide and to hold a Group 31 Lithium Battery and other wiring needs with room to spare for any other components/ shelves, etc.
Depending on battery size it can fit up to 300ah of lithium (the Epoch 300ah LiPo4 is a perfect example)

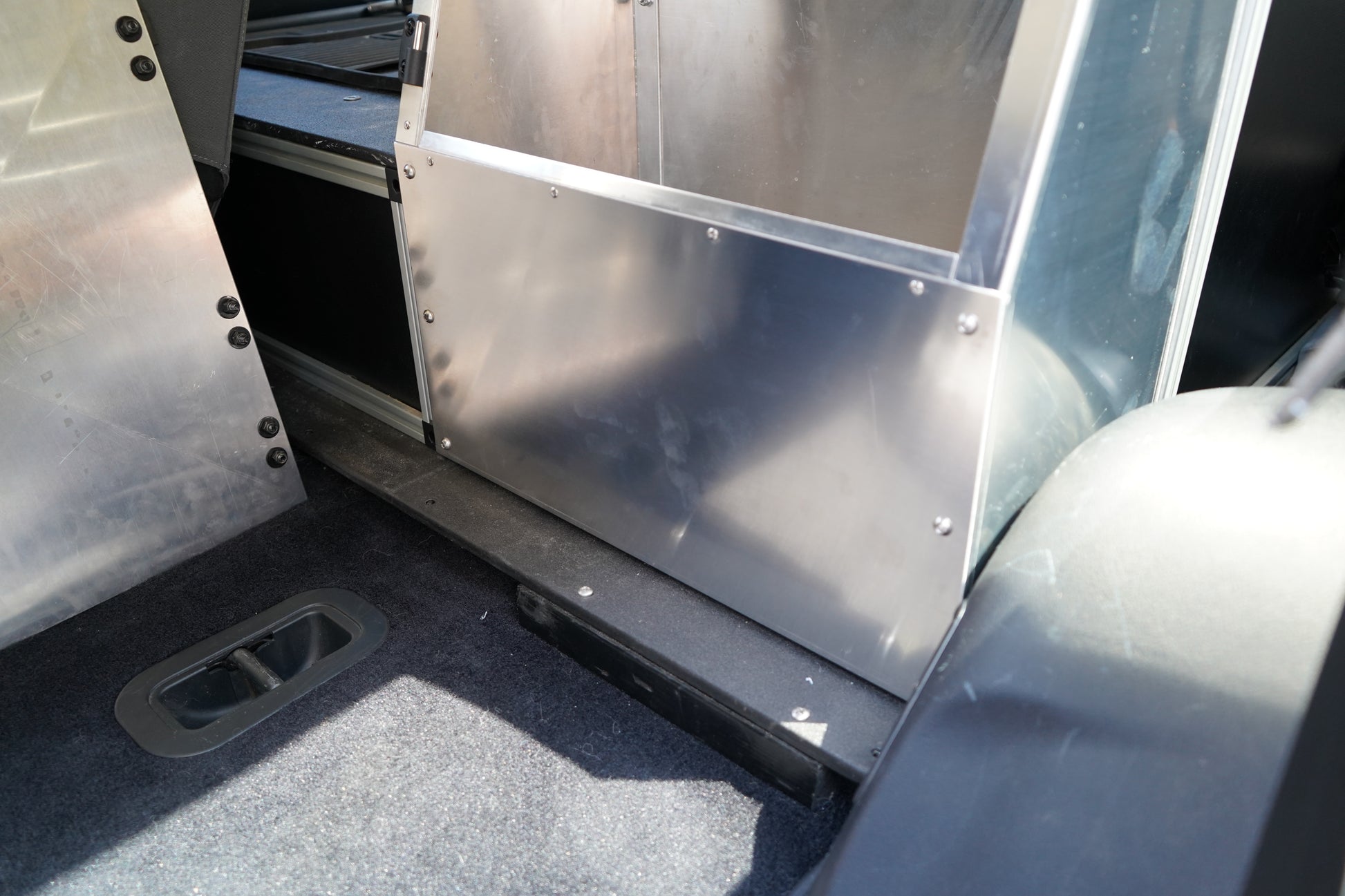

Mounting is easy accomplished with 8 supplied 1/4-20 SS bolts and T-nuts for wood or any other means dictated by your setup. Normally this would be mounted to some type of plate system in the truck but could be mounted directly to the truck.

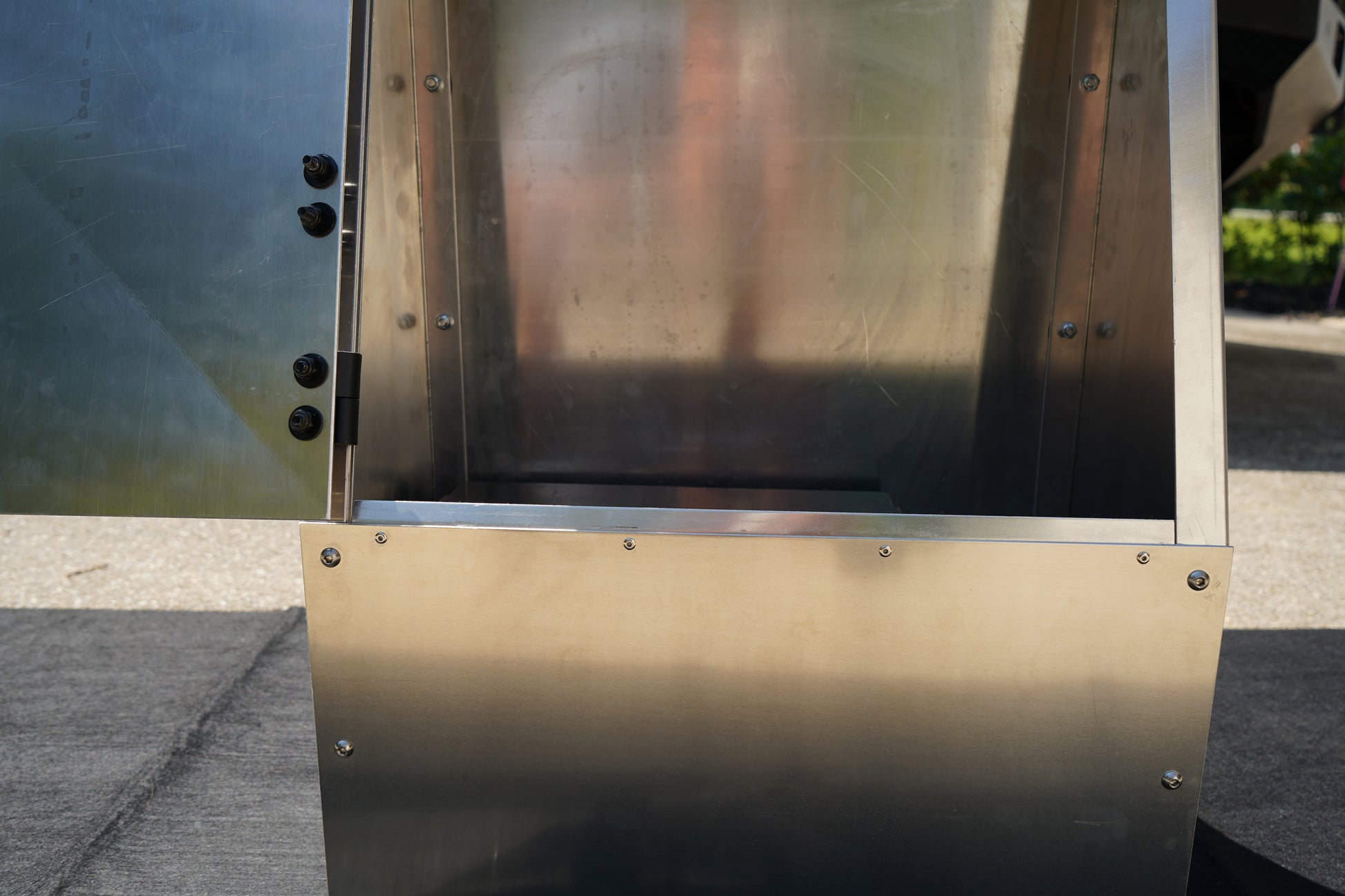

The Bottom is made of 2 layers of Aluminum and supplied with 8 locating divots for easy bolt mounting (not drilled).

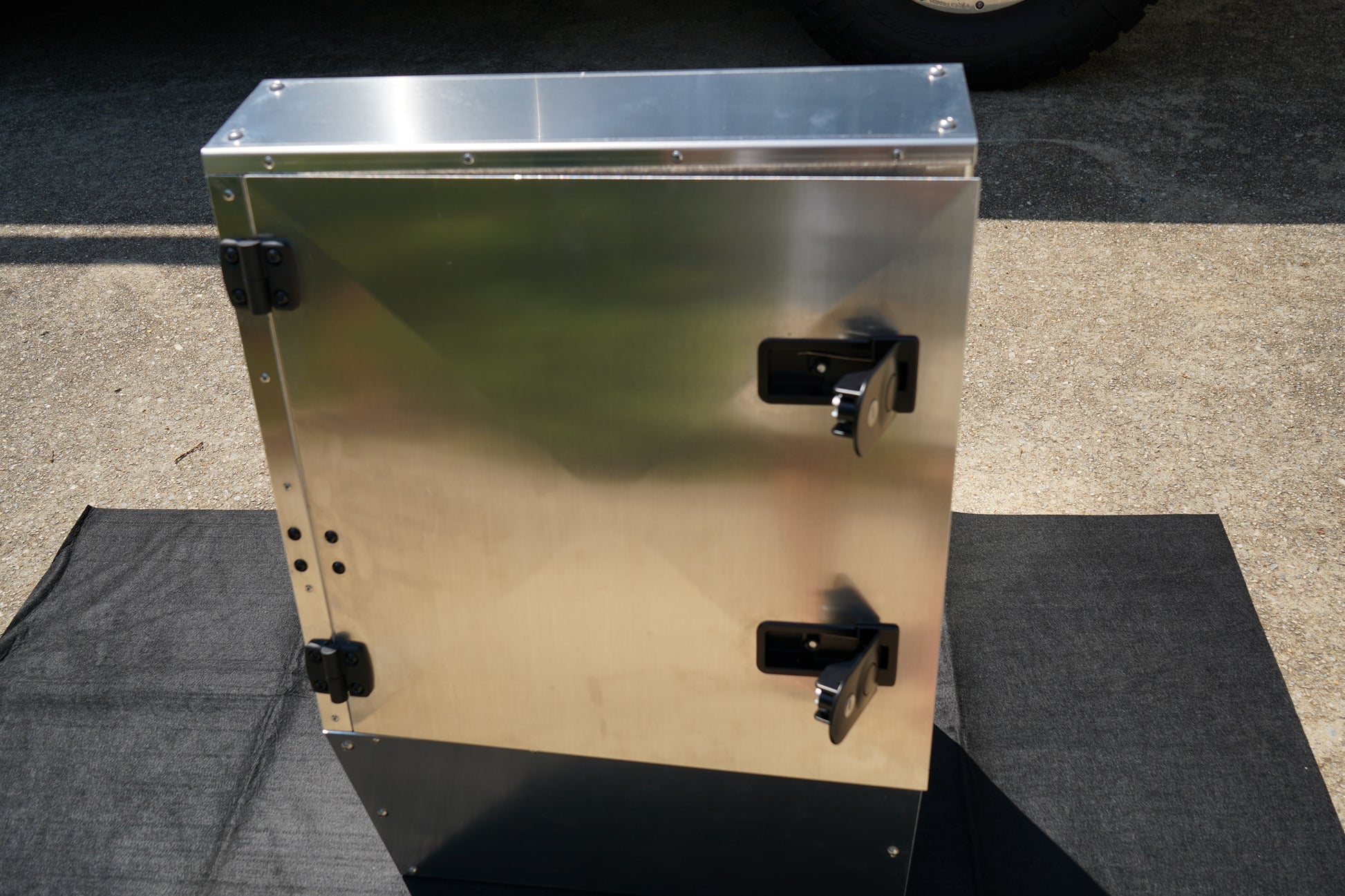

The Latches are lockable and are supplied with 2 sets of Keyed alike keys. It is made of Aluminum and is not intended as a safe, But it is semi-hidden lockable storage.

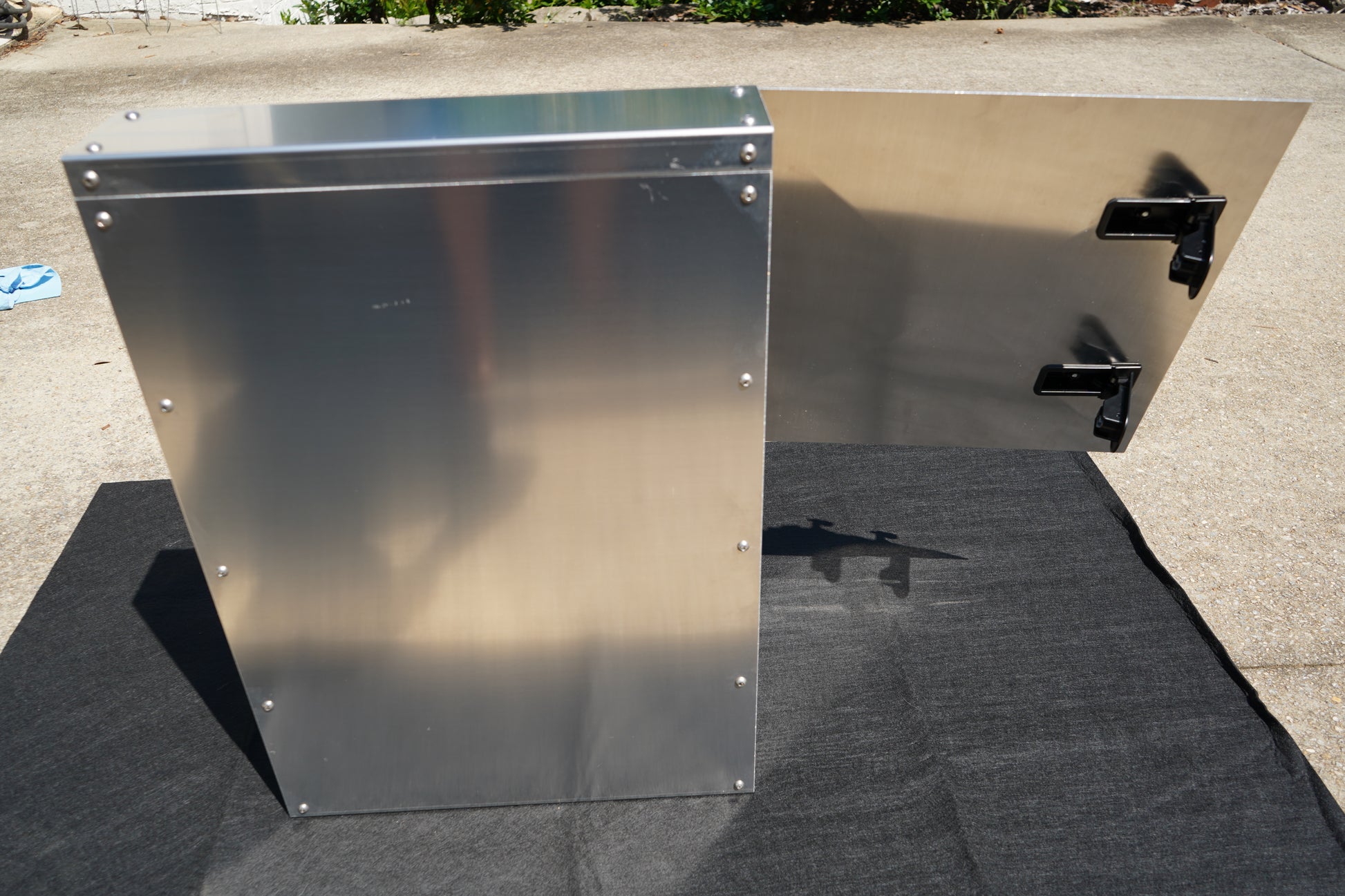

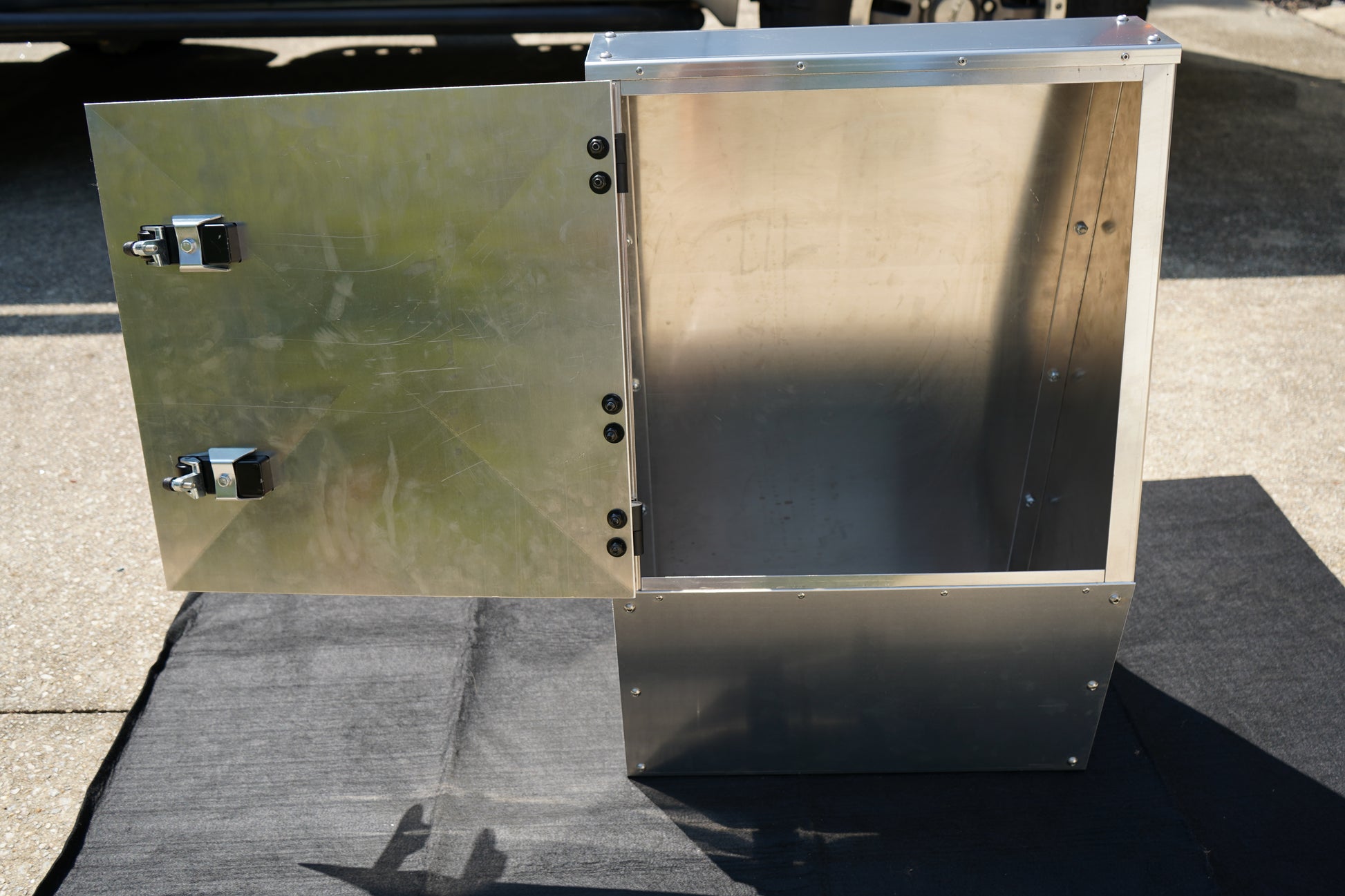

The Hinges are lift-off allowing the door to be completely removed for ease of installation and servicing any gear inside the box.
Ideas:
Electrical battery and wiring cabinet.
Gun storage
Camera Gear Storage
Laptops and Valuables
Water system components.
Mounting point for any vehicle sub-system such as inverters or other sensitive gear.
Measurements:
Exterior
W= 485mm / 19.10”
H= 700mm / 27.56”
D= 250mm / 9.84”
Top Depth= 105mm / 4.13”
Interior
W=480mm / 18.89”
D=246mm / 9.68”
H=695mm / 27.36”
Weight
9.072kg / 20lbs
Material: 0.090 Aluminum W/ stainless steel Hardware.
Finish: Bare Aluminum
Black Powered Coat: + $125

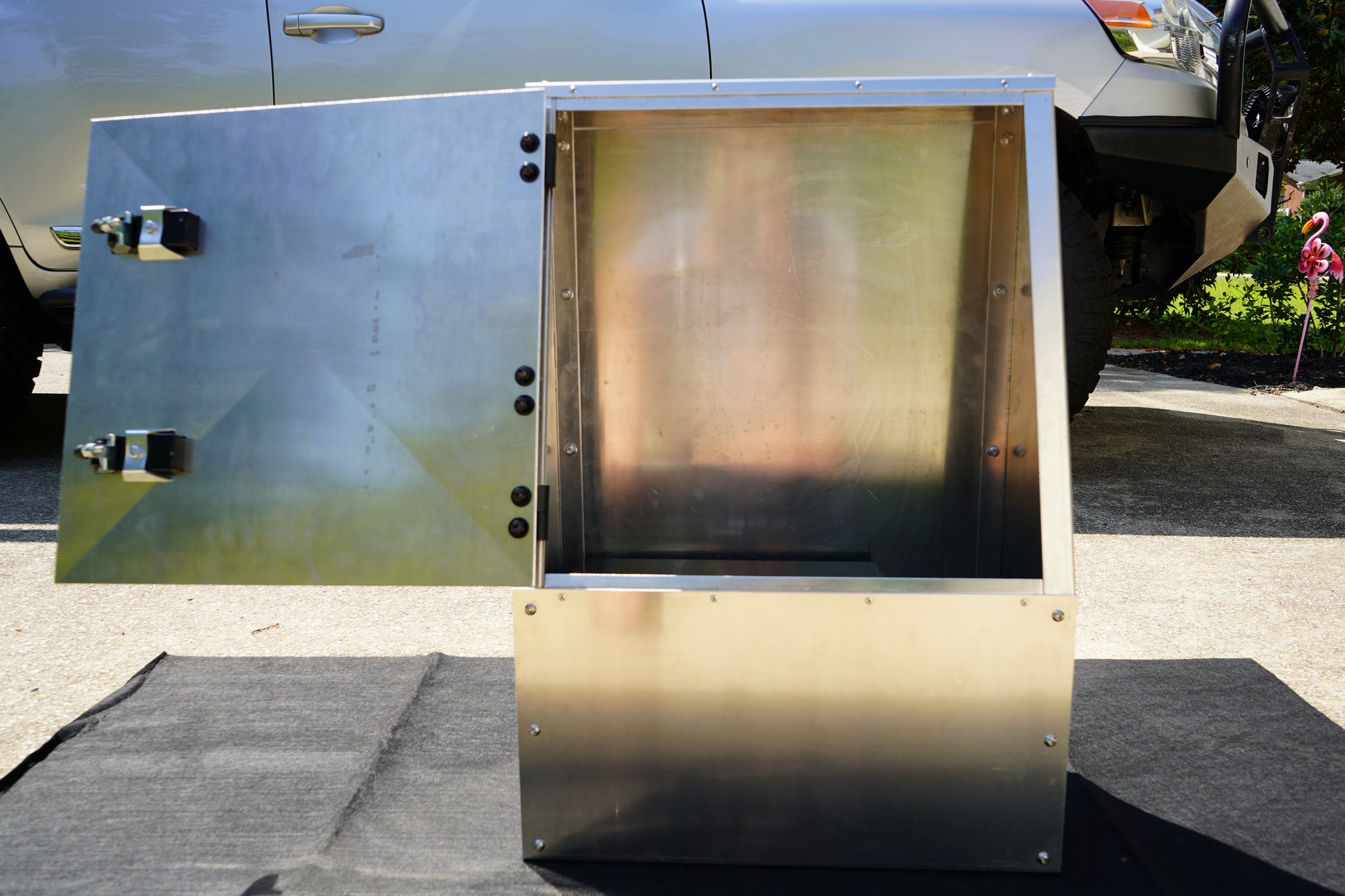

Please note Shipping versions only include the drilled hinge locations for 2 hinges (top and Bottom) and not the 3 Hinge pictured on the prototype.
International Buyers:
This can be disassembled and flat packed, a Neoprene foam seal can also be added to the door to seal the box up to help with local regulatory compliance (please verify your countries laws and regulations)
Rivets will be replaced with SS screws and nylon nuts on flatpack boxes.
Proudly Made In North Carolina, USA..
