ATTENTION : no matter what video you watch for install online Or from this page torque to 75lbs and use generous amount of blue lock tite or very little red.
Eliminates binding in the sway-bar bushings so the bar can slide and cycle smoothly.
Gives you adjustability the factory brackets never offered.
Works with OEM or polyurethane bushings.
Makes sway-bar installation and maintenance way easier thanks to slotted mounting holes.
Why You Need It

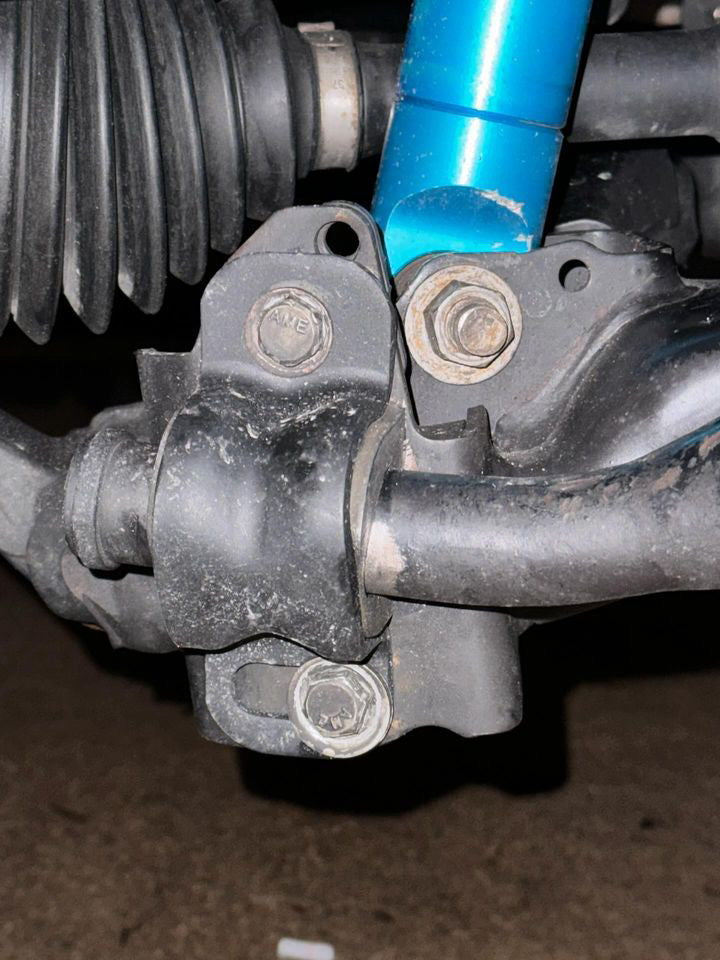

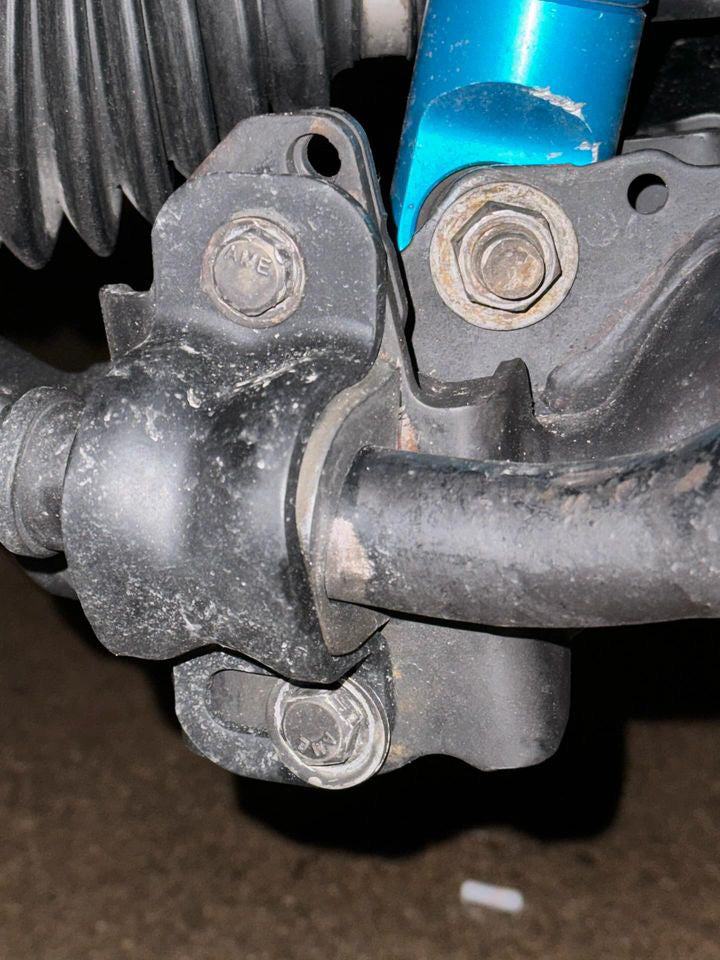

Lift a KDSS-equipped 4Runner or GX more than ~2" and your front sway-bar bushings start to bind.
That binding adds resistance, shortens bushing life, and limits suspension movement.
These adjustable brackets fix the angle so everything lines up correctly again — no more binding, no premature wear, and a smoother ride.
Special Scenario: If you’re running extended-travel or long-travel (Total Chaos, etc.) with KDSS, you’ll need the adapters to gain that extra droop. The adapters may slightly over-clock the bushing angle, and that’s where the bushing bracket comes in — it corrects the angle and keeps everything cycling smoothly with no bind.
Design & Compatibility

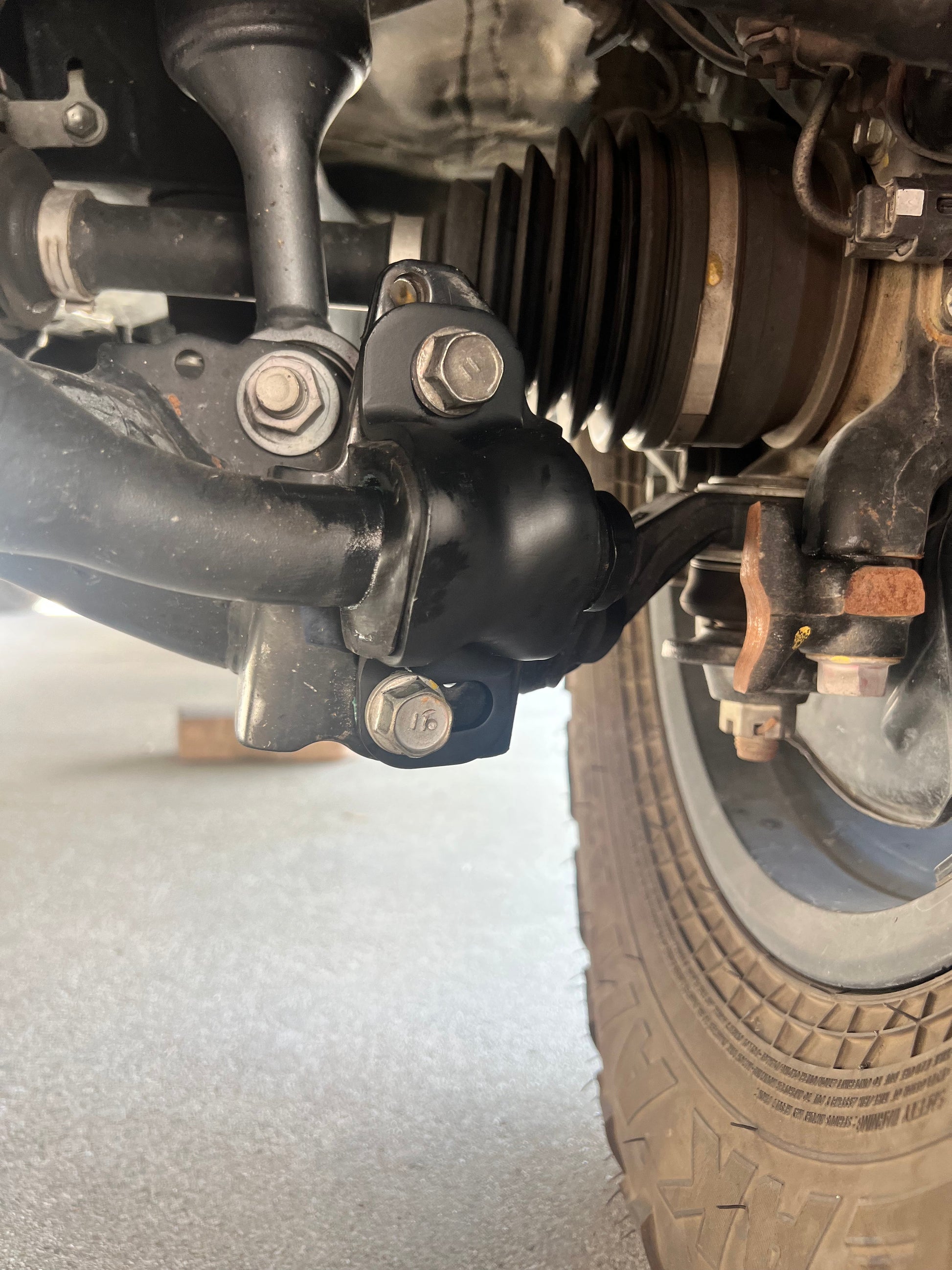

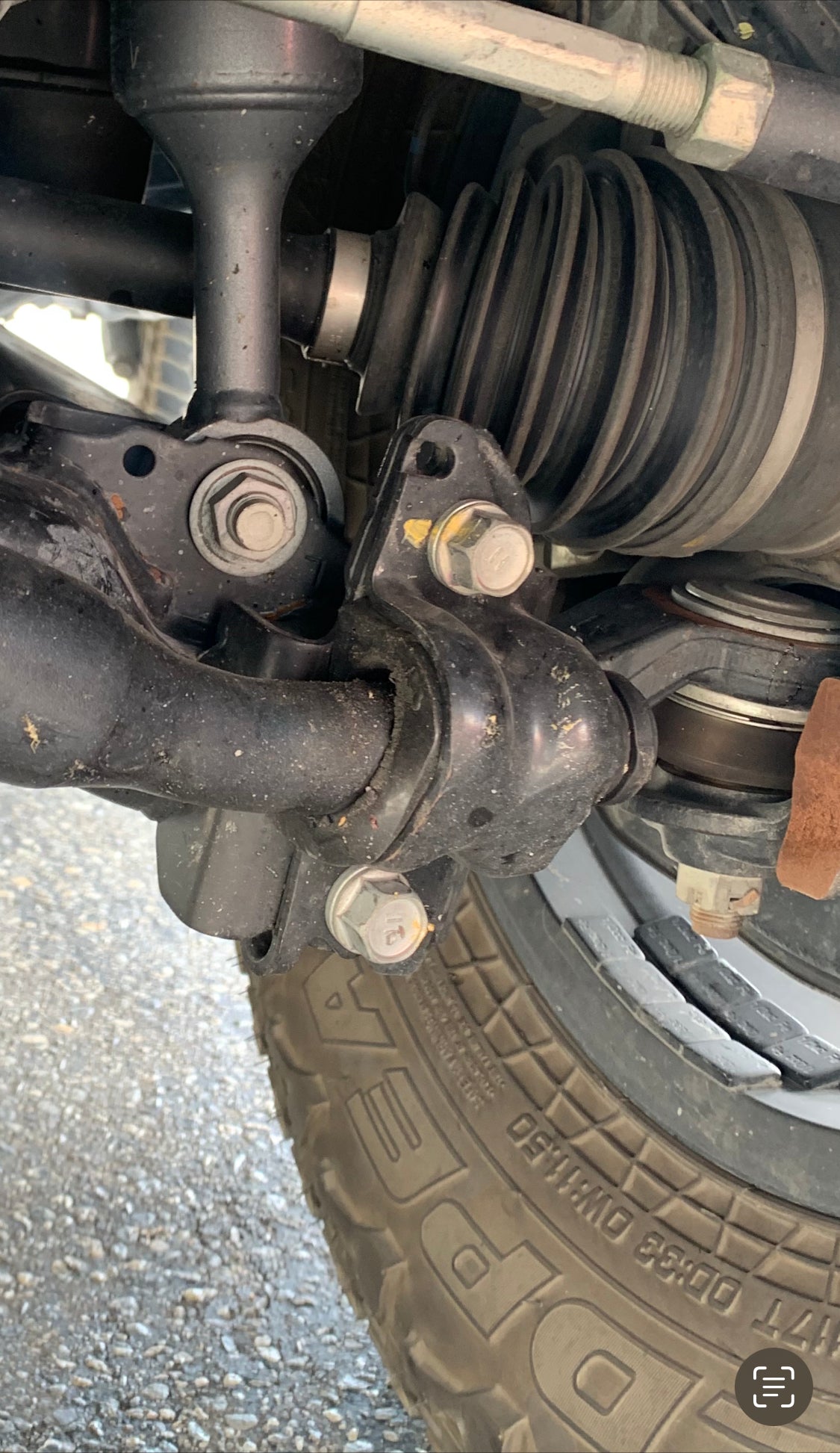

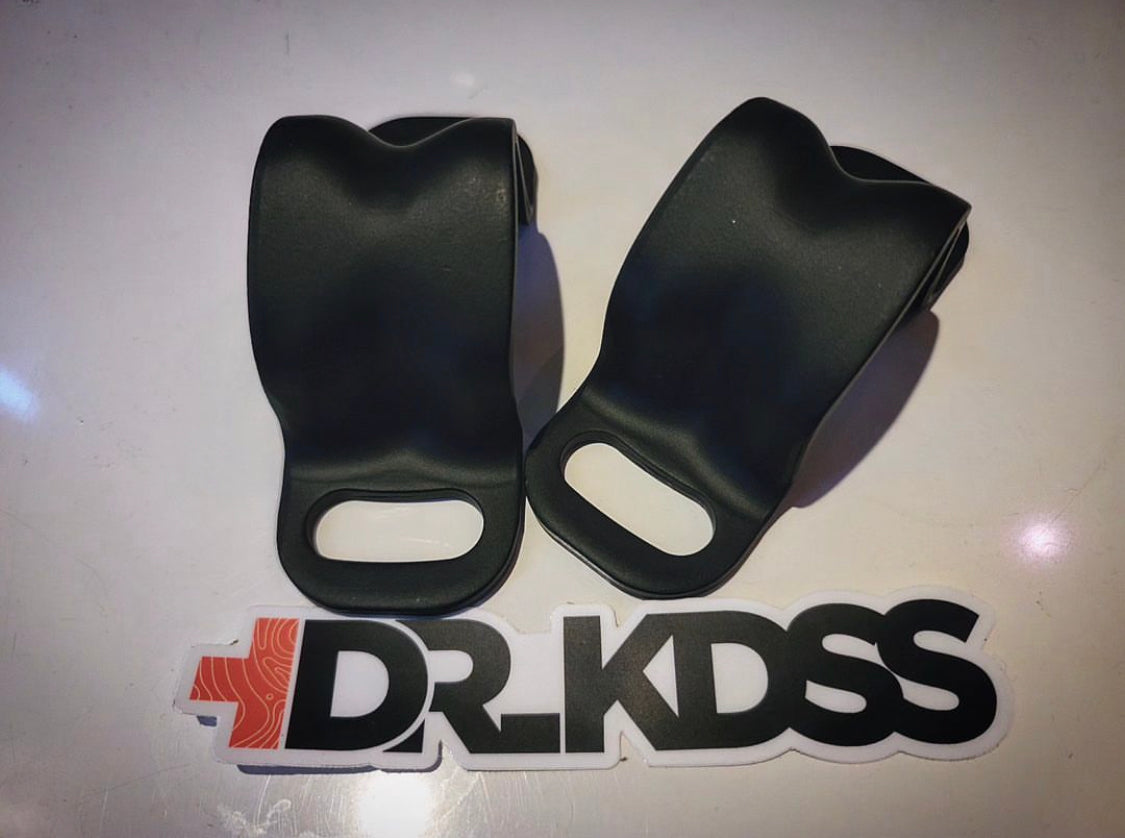

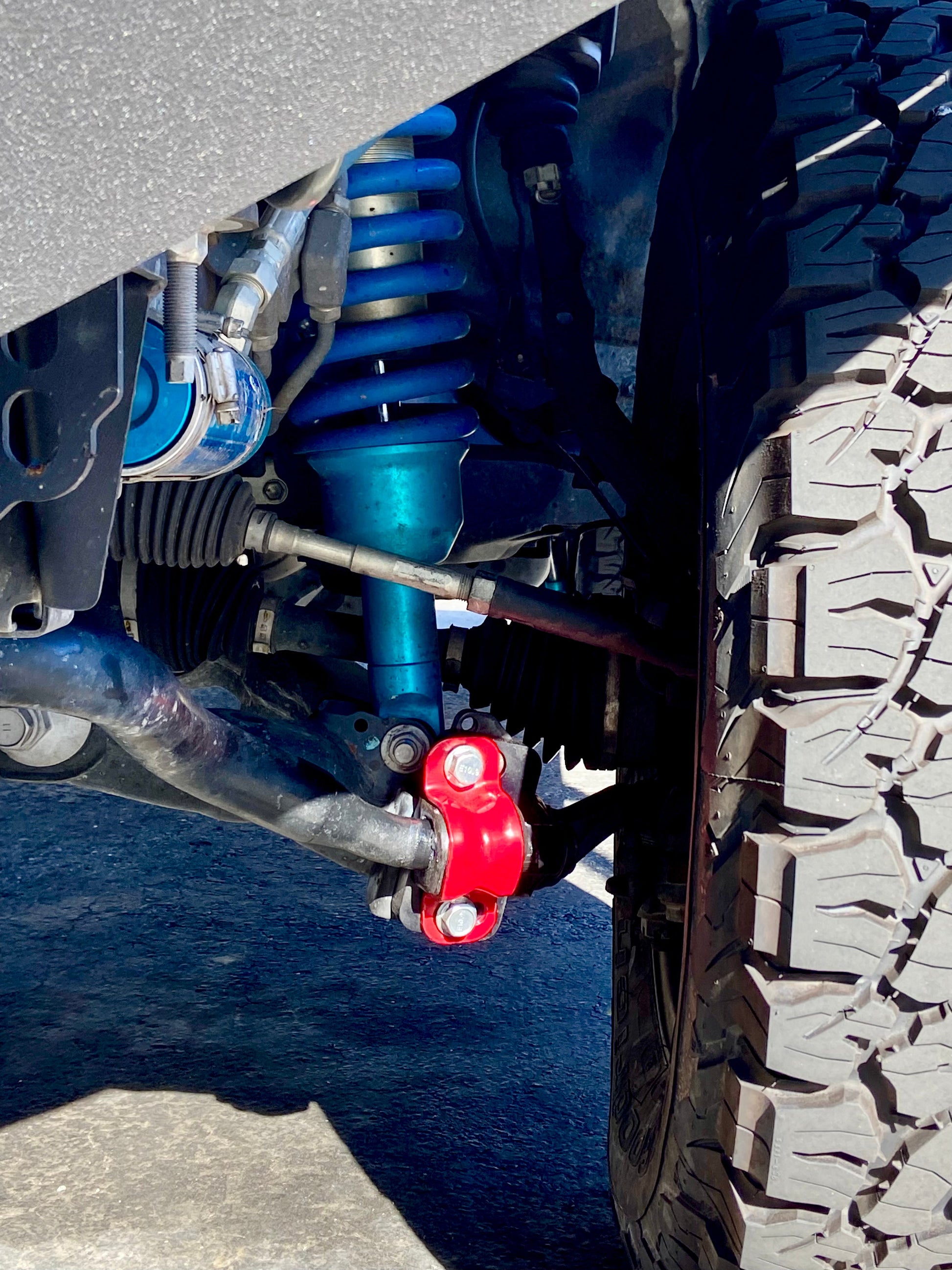

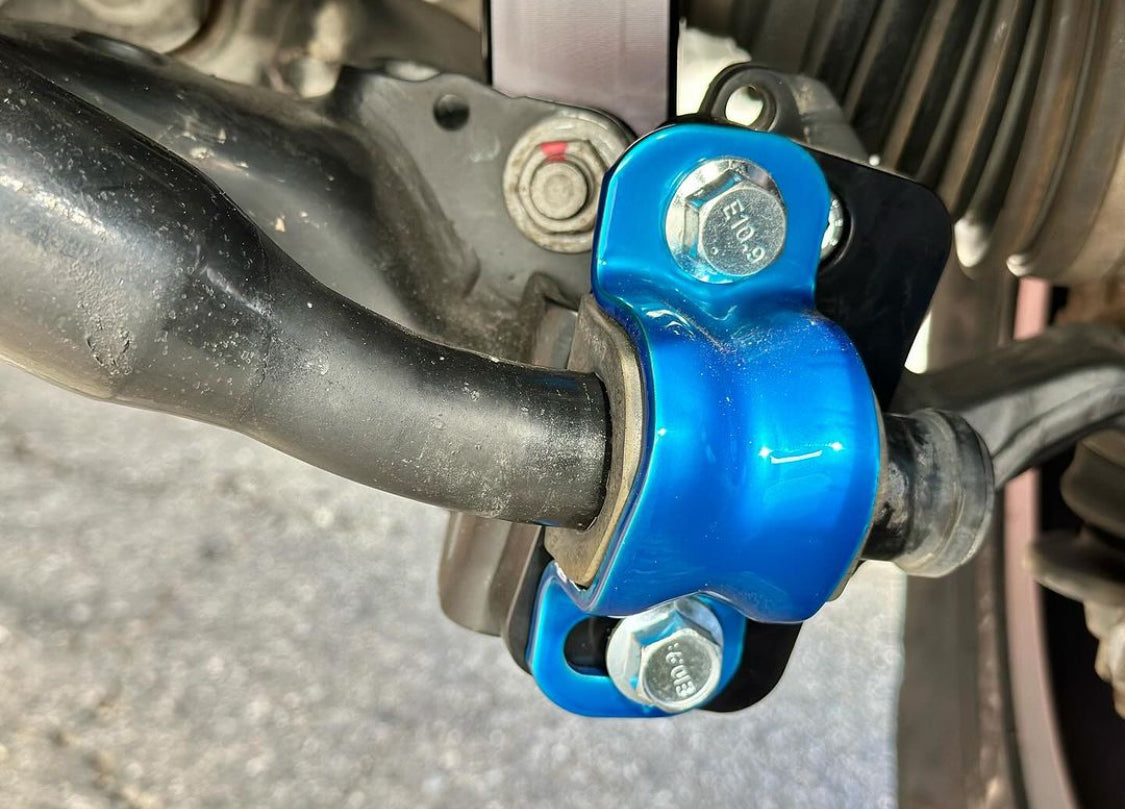

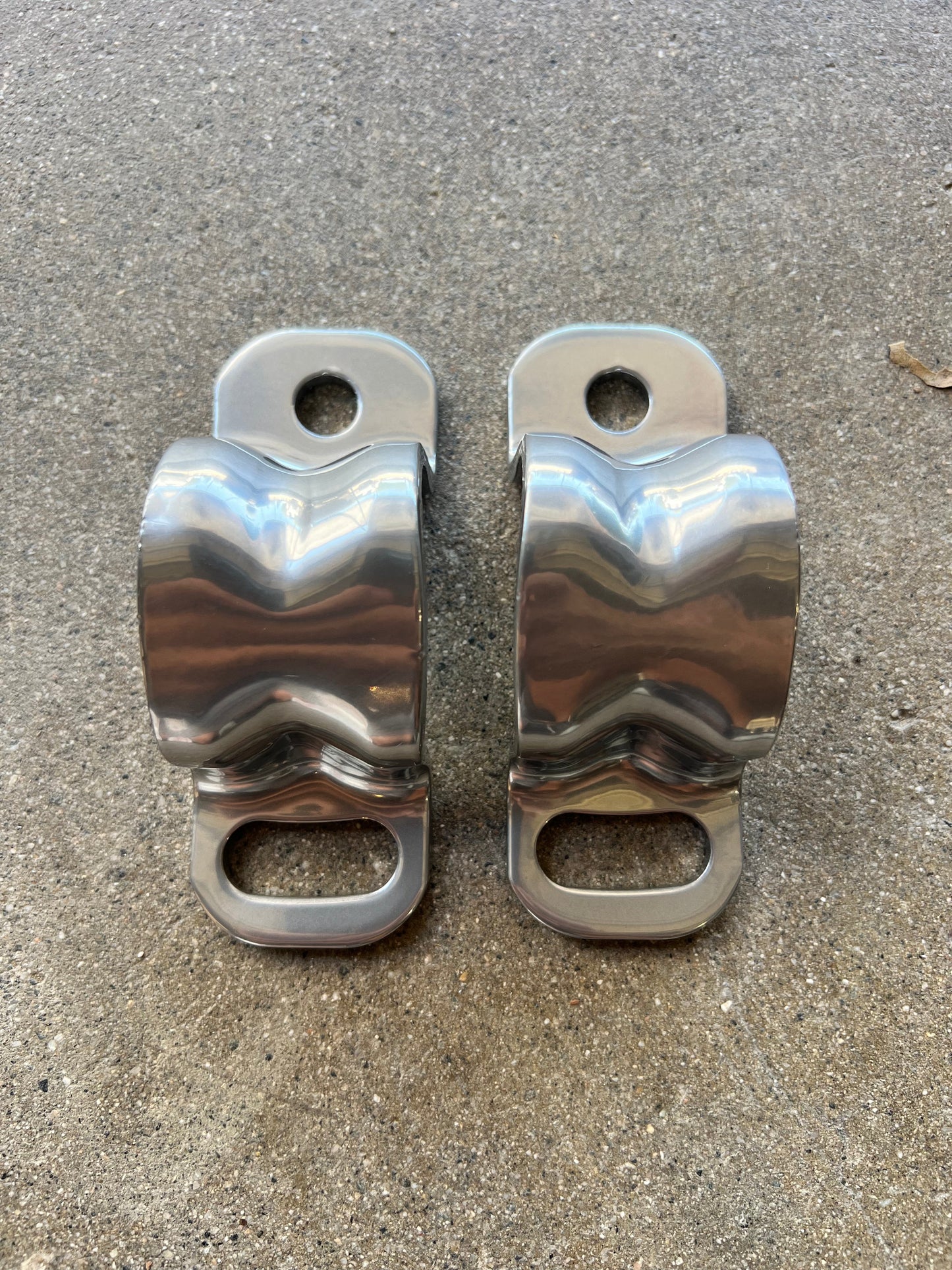

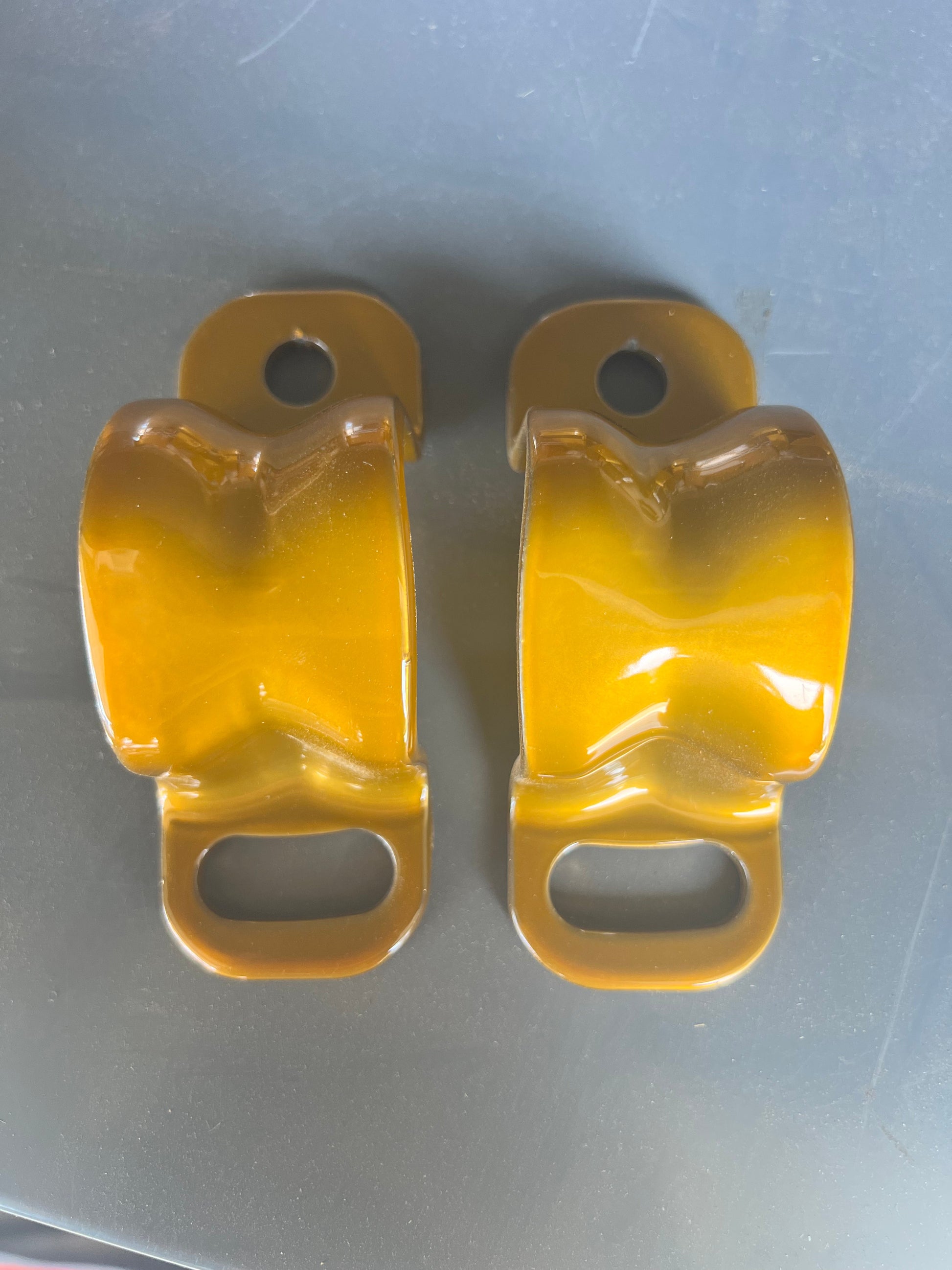

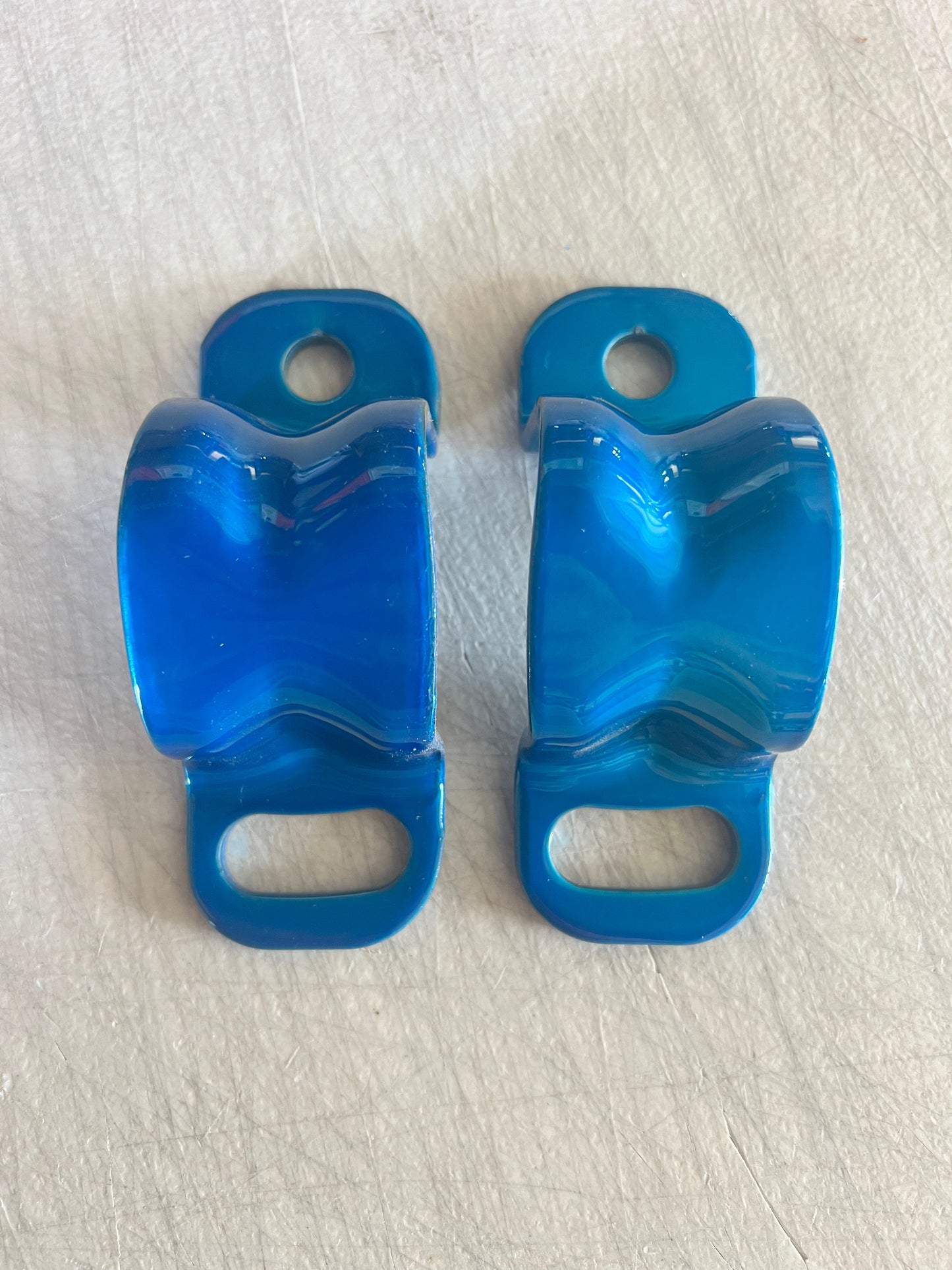

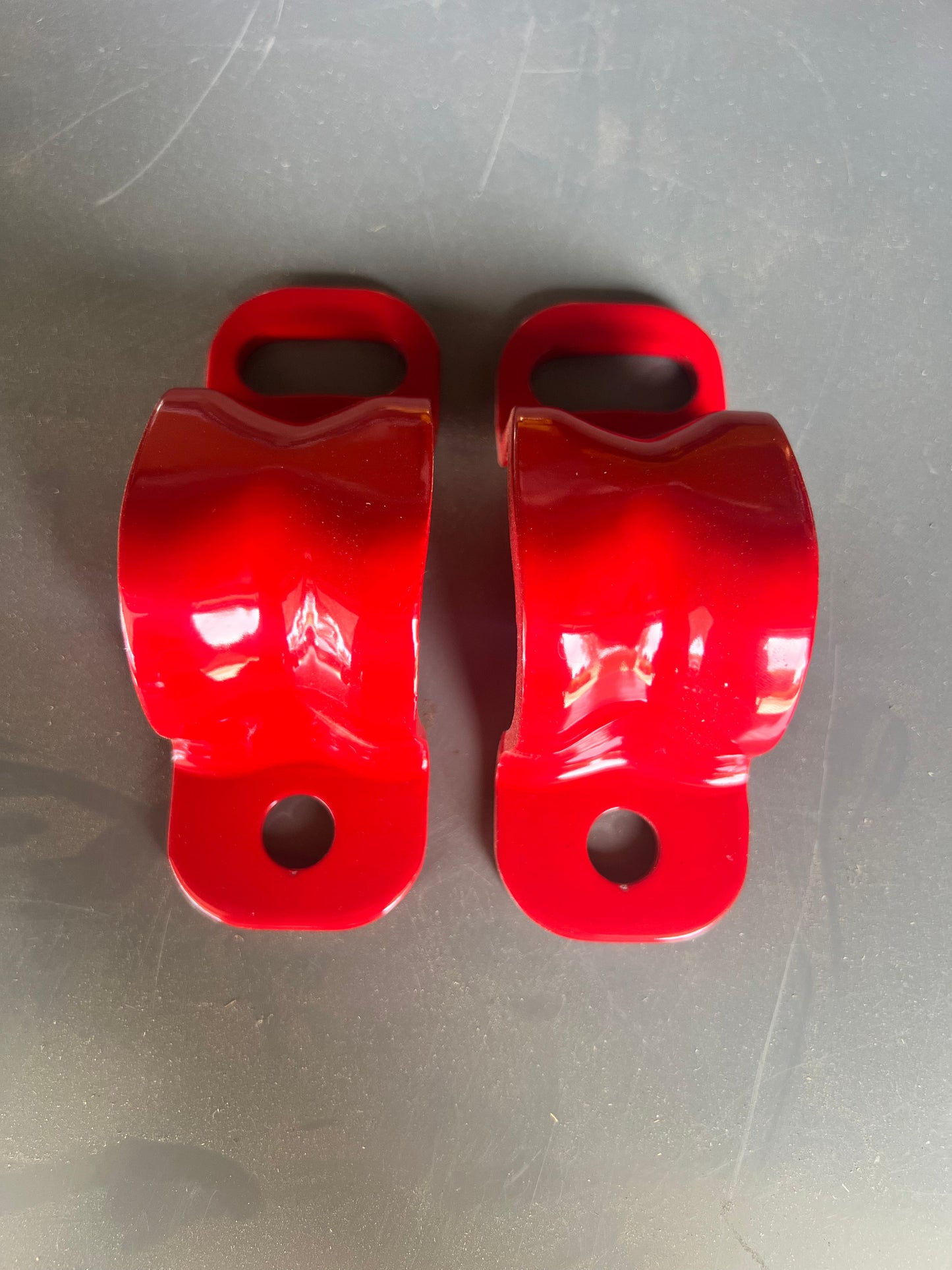

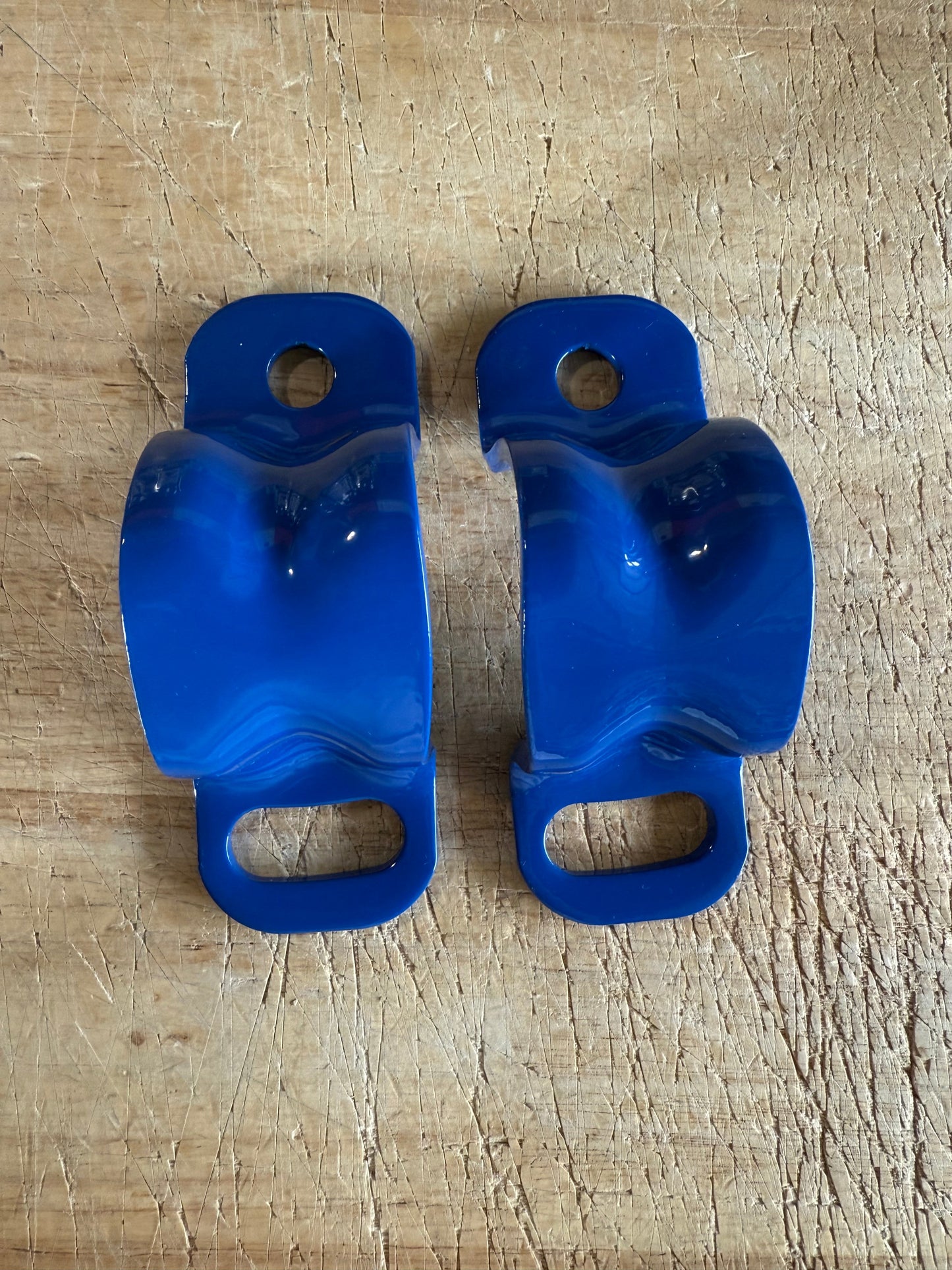

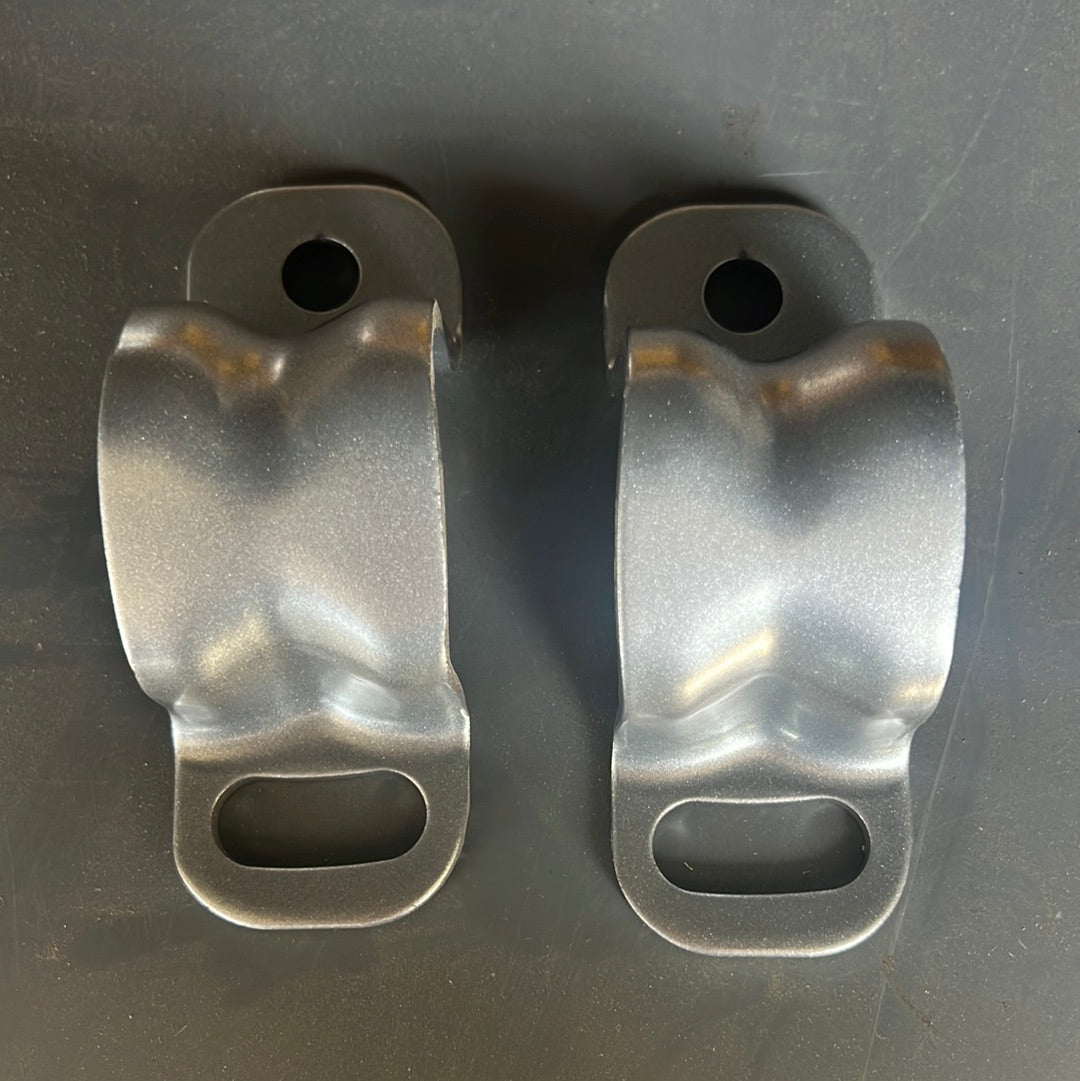

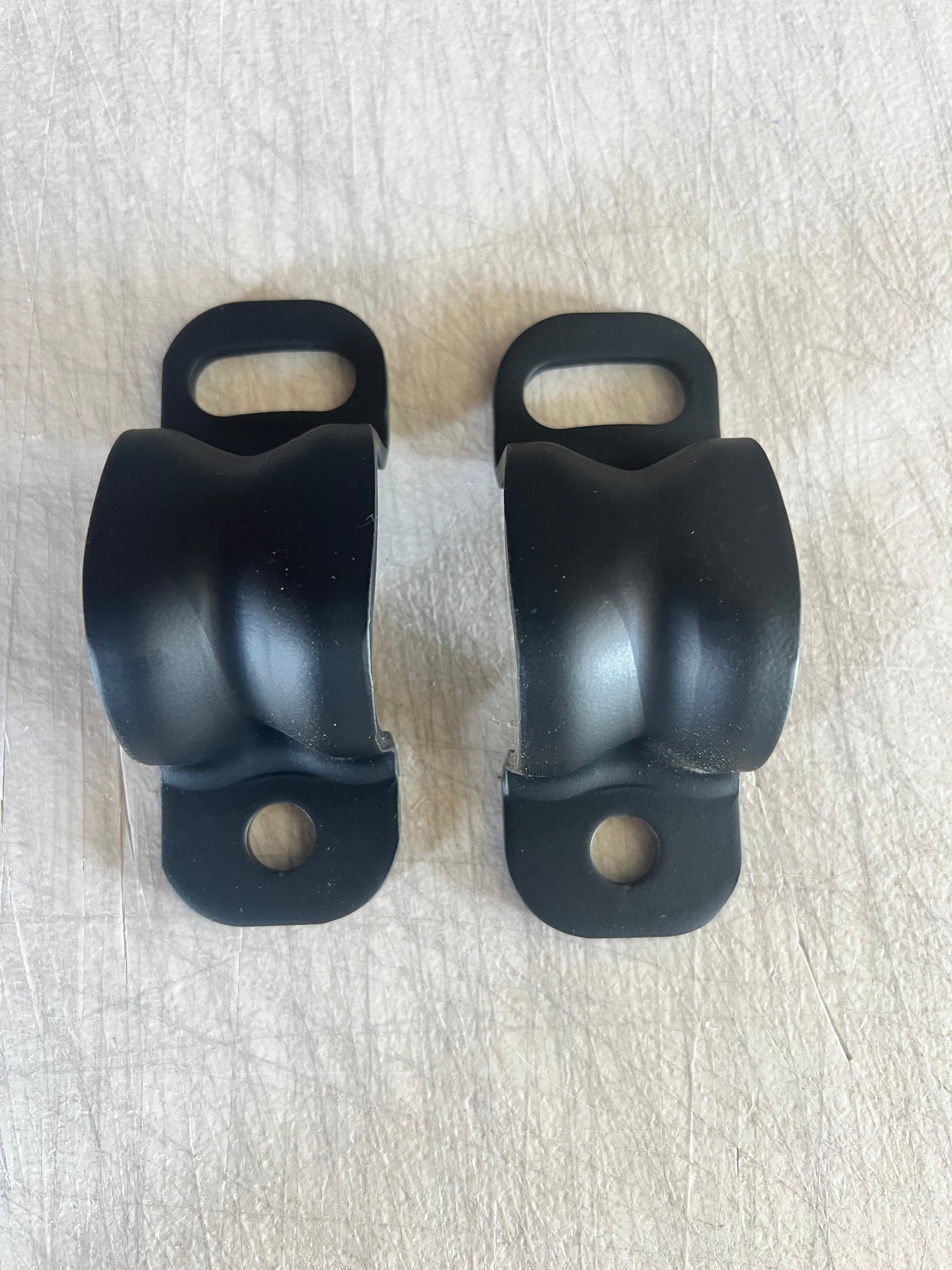

CNC-machined, high-strength steel brackets sold in pairs. Black powder-coated for durability and a clean OEM-plus look.

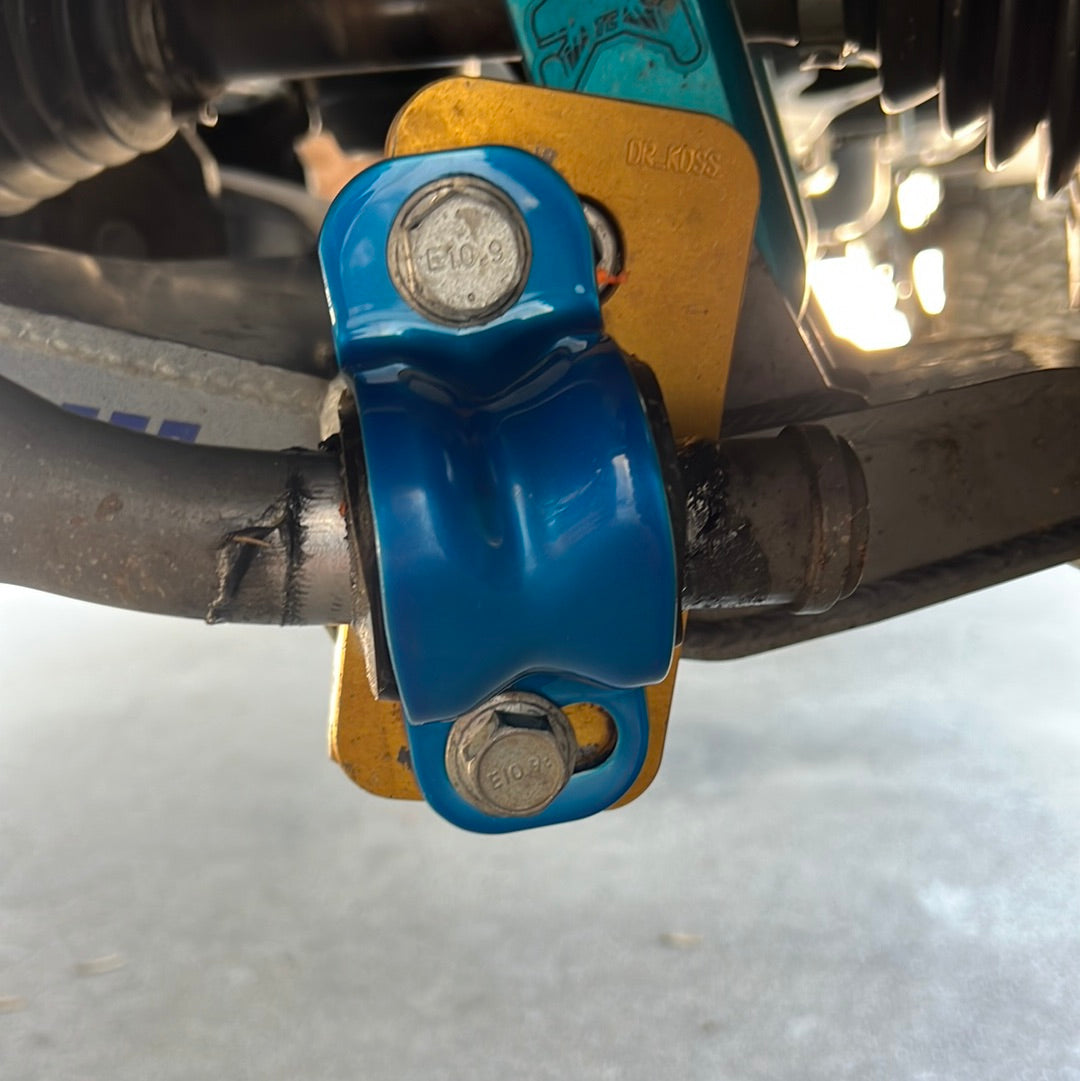

Designed to work perfectly with DRKDSS KDSS Billet Adapters — no cutting or modifying required.
Use with OEM brackets + adapters? You’ll have to cut the OEM hooks — this bracket removes that step.
Can also be used with KDSS Drop Spacers to fix bushing angle if you’re keeping the sway bar low.
Even stock, un-lifted trucks benefit from the easier alignment and smoother installation.
Install Notes

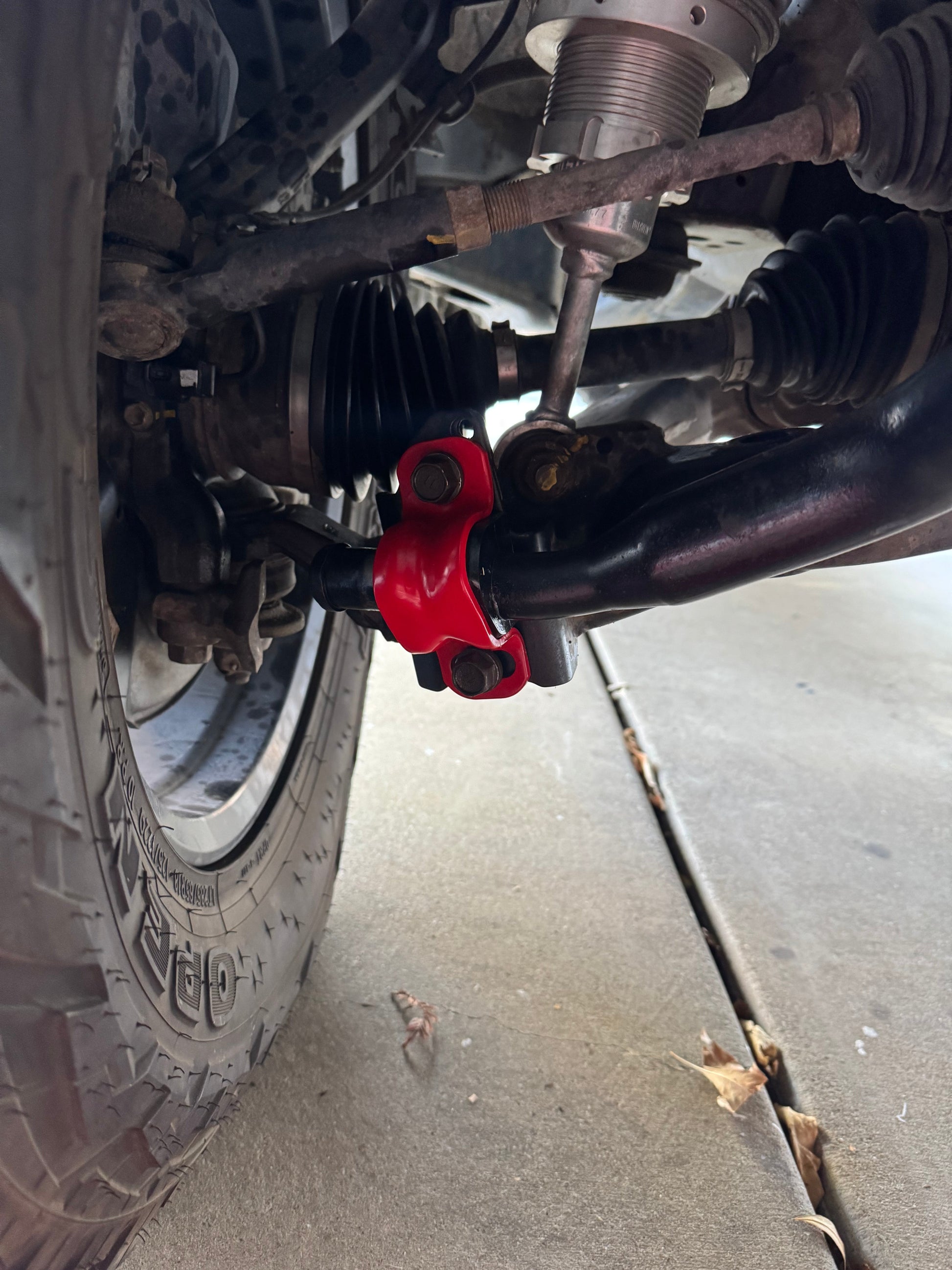

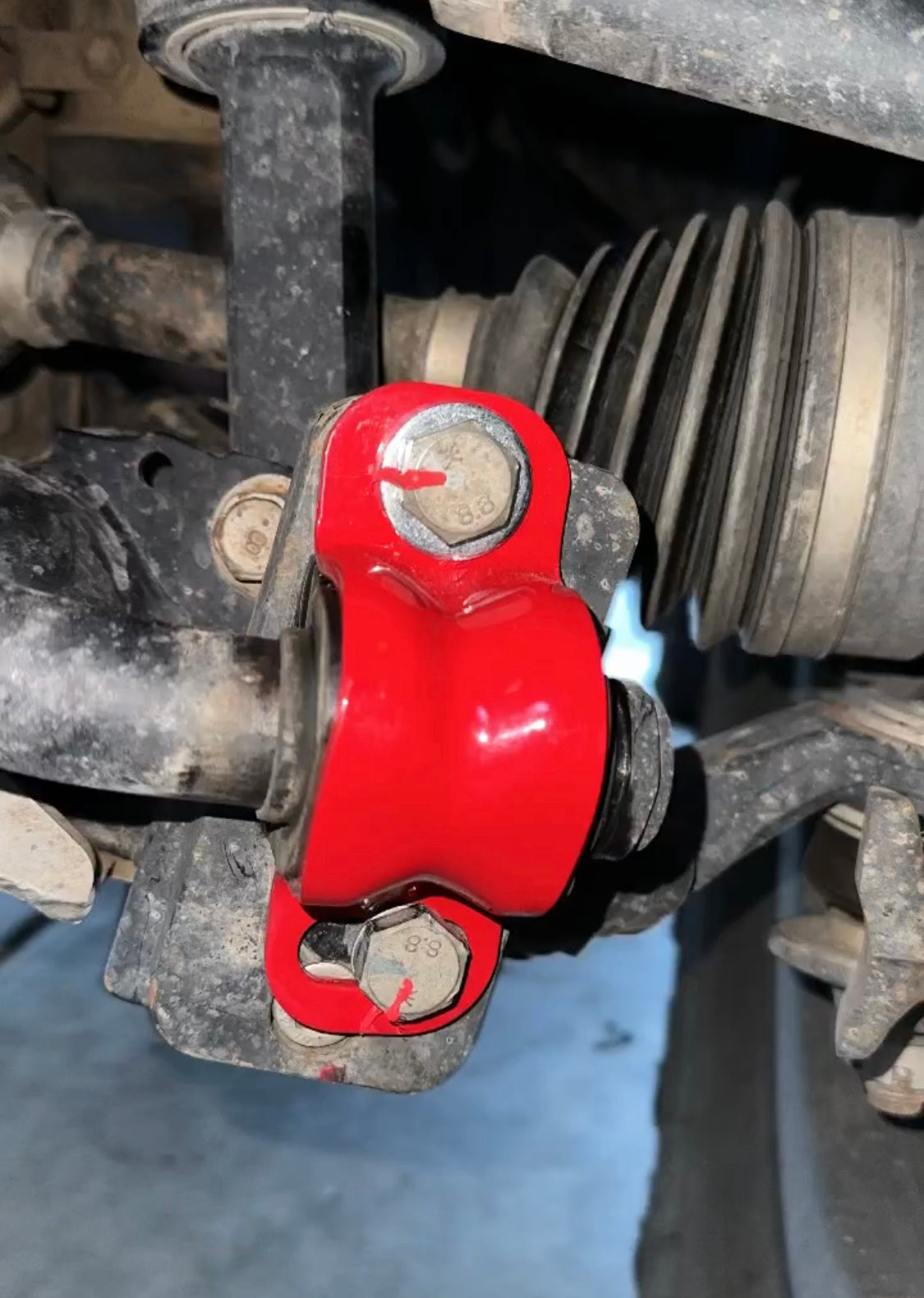

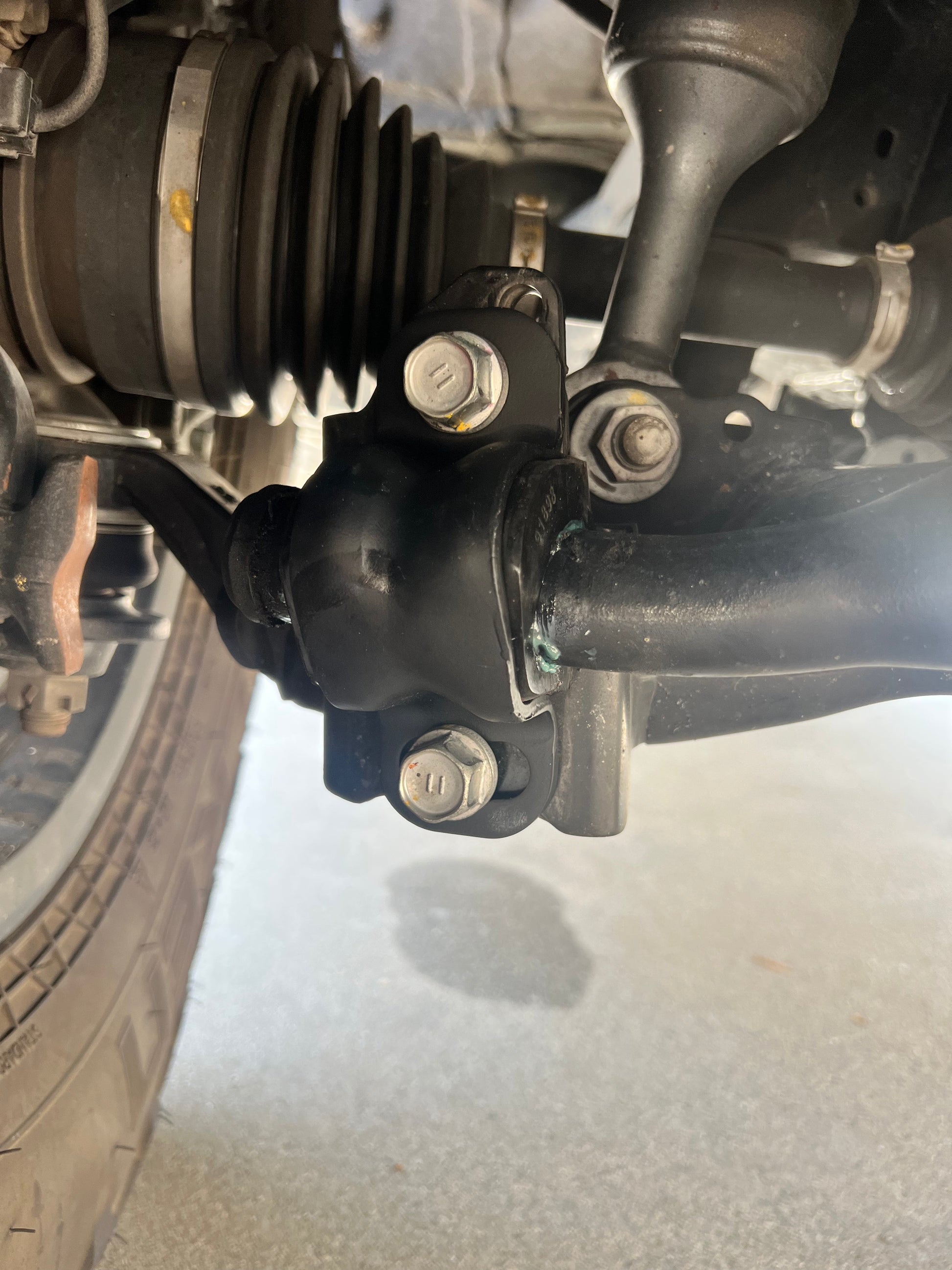

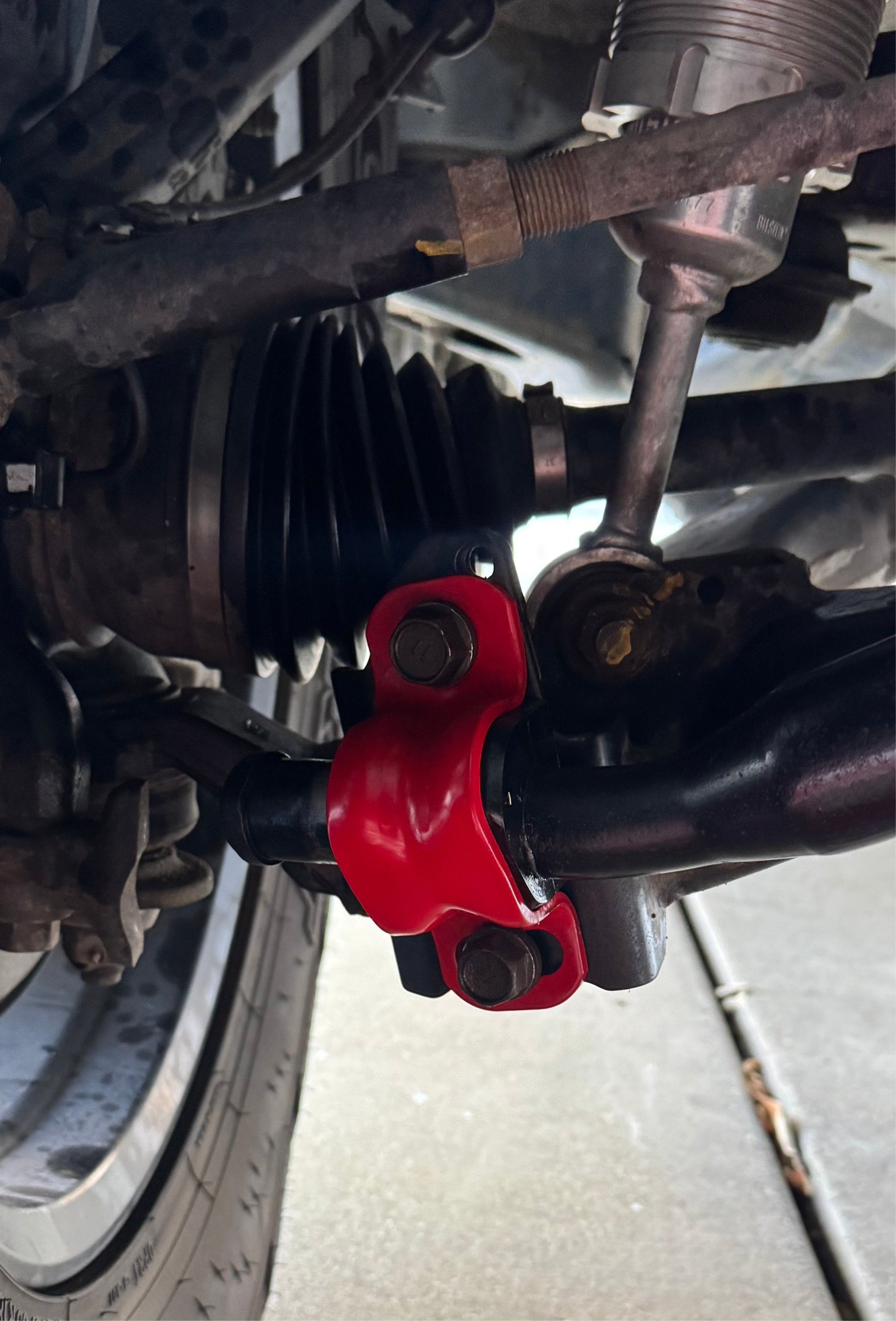

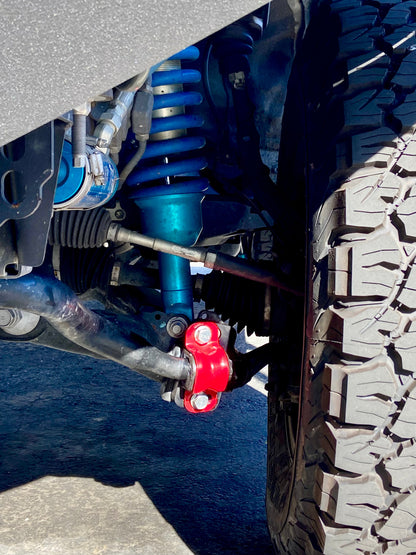

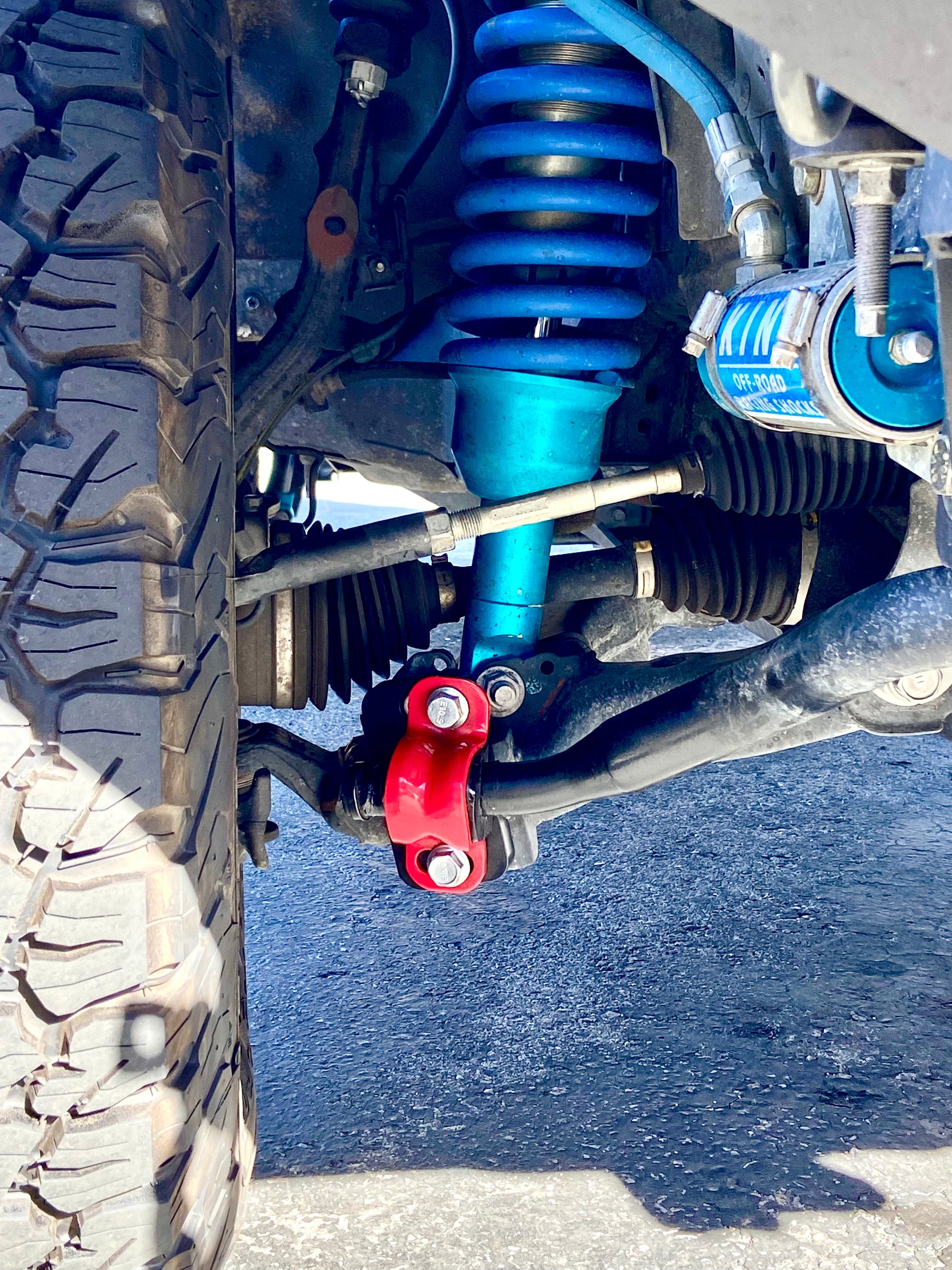

Bolt-on installation using factory hardware.
Adjust the bracket position to dial in your exact bushing angle.
Works with OEM or Polyurethane Bushings — OEM recommended for most users who don’t grease regularly.
Benefits
✅ Corrects bad bushing geometry after a lift. ✅ Prevents bushing bind and premature wear. ✅ Makes front sway-bar installs faster and easier. ✅ Compatible with DRKDSS adapters for perfect geometry and full droop. ✅ Adds customization and adjustability to your KDSS system.
